60CM DTF Powder Shaking Machine XY-CT-M2C

Major Advantage Highlights

The new touchscreen offers integrated control for easy operation.
Featuring a patented roller powder trough design, it replaces traditional brush powder feeding, ensuring even powder distribution to prevent motor jams and overheating, maintaining stable powder feeding. It also includes an automatic take-up system.
The patented design of the multi-axis wheel prevents the Teflon mesh belt from slipping, making production smoother.
The baking channel is equipped with double air suction to prevent the packaging film from warping or deviating during the process.

INQUIRY

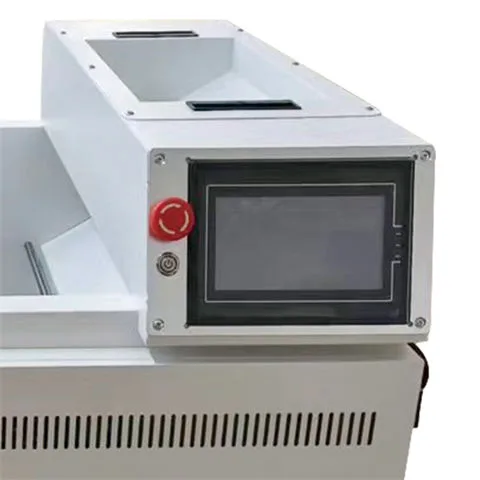

1. LCD Panel

Manual/automatic control

Powder shaking speed control

Powder spreading time control

Mesh belt suction speed control

Mesh belt speed control

Mesh belt direction control

Curing temperature control

Front heat guide plate temperature control

Cooling fan control

2. DTF Film Transmission

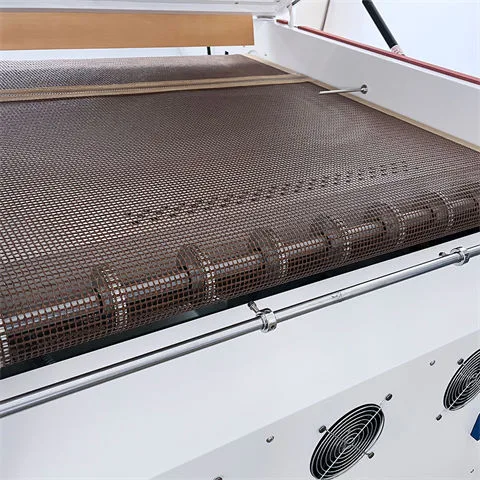

Mesh belt transmission, guide belt type.

3. Heating and Drying Function

Two-stage heating + front heat conduction plate heating, drying and curing, and cold air cooling function.





Model	XY-CT-M2C
Media Width	0-600mm
Suitable Media	PP Paper/PET Stamping Film
Control Panel	Automatic/manual control, powder shaking speed control, powder spreading time control, mesh belt suction speed control, mesh belt speed control, mesh belt direction control, curing temperature control, front heat-guide plate temperature control, cooling fan control
Heating Drying Function	Front heat-guide heating, drying and curing, cold air cooling function
Material Transfer	Mesh Belt Conveyor, Guide Belt
Winding Function	Automatic inductive winding
Rated Voltage	220V
Rated Current	16A
Power	5KW
Heated Drying Oven Size	750mm
Machine Dimension	L2222W1092H1080mm
Package Dimension	L1570W1150H1130mm
Gross Weight	250KG

The updated model of our powder shaking machine features an advanced LCD touch panel, offering an enhanced user experience with intuitive controls.
