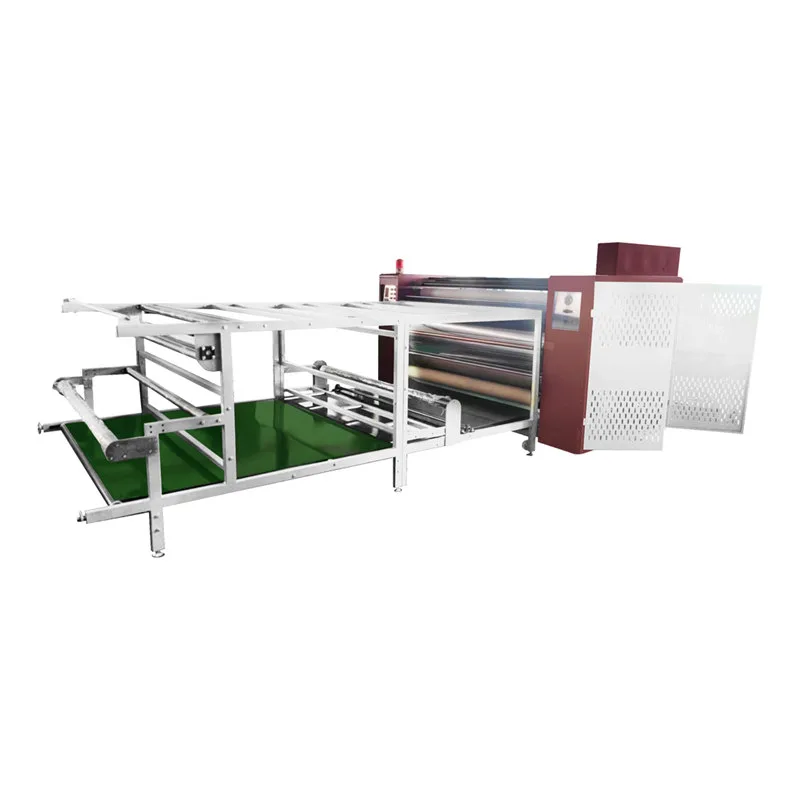

Gravity Pressurized Sublimation Roller Heat Press Machine XY-BC1000

Major Advantage Highlights

Equipped with an independent air pressure control system for precision operations.
Automatic blanket correction and oil injection eliminate the need for manual adjustments.
High efficiency and low production cost. The transfer speed can reach 800-1000m/h.
Gravity pressure system ensures vibrant and flawless color transfers for outstanding results.
Includes an automatic oil-lubricating system, intelligent controller, and manual tension wheel to protect the machine and blanket.

INQUIRY

Product Details

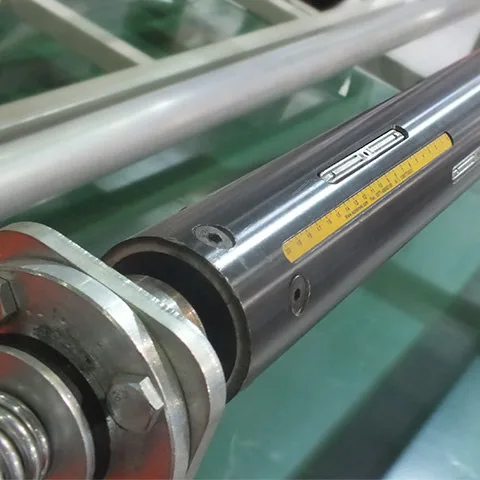

1. Roll to Roll Printing

This machine with 4-5 air ledger shafts. Finished paper shaft, paper protection shaft, shaft with brake torque and speed regulating motor make all the rolled paper more neat and compact.

2. Intelligent Controller Panel

It can precisely control the machine shutdown and cut off the power supply when the heater temperature drops below 80 degrees during non-working hours, extending the service life of the blanket and thermal oil.

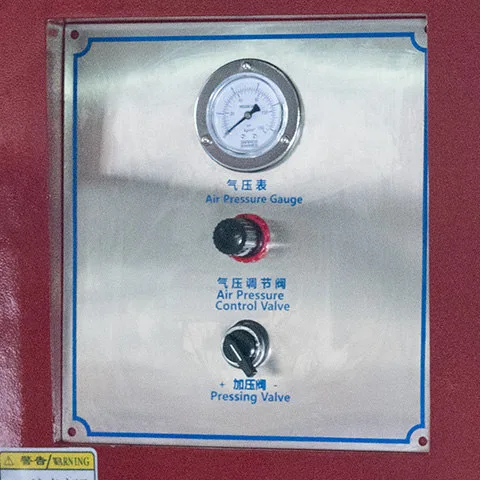

3. Independent Pressure Control System

With an independent pressure control system and with a pressure control button, independently monitor and regulate air pressure accurately.

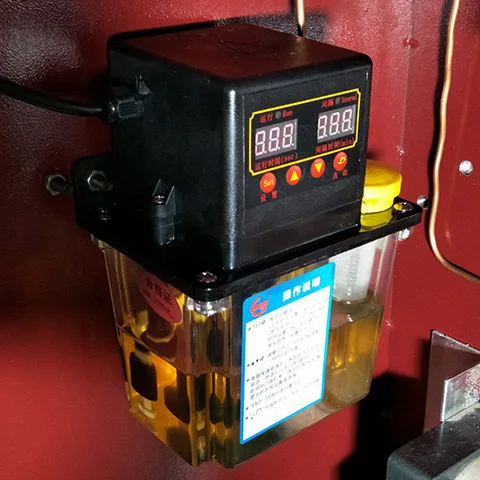

4. Dual-display Automatic Oil-lubricating System

Lubricating oil can be quantitatively injected to maintain the lubrication state of the bearing and increase the service life of the bearing.

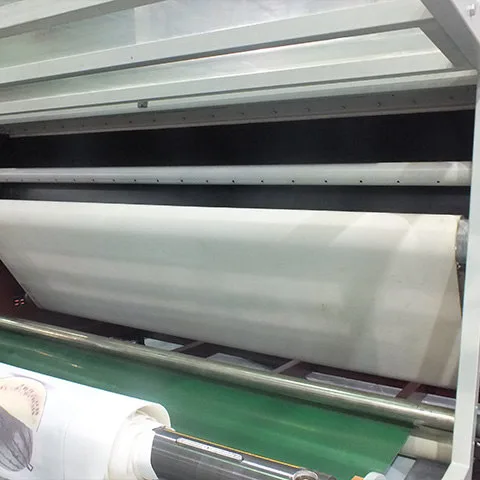

5. Blanket Covering

more than 75%, higher transfer efficiency.

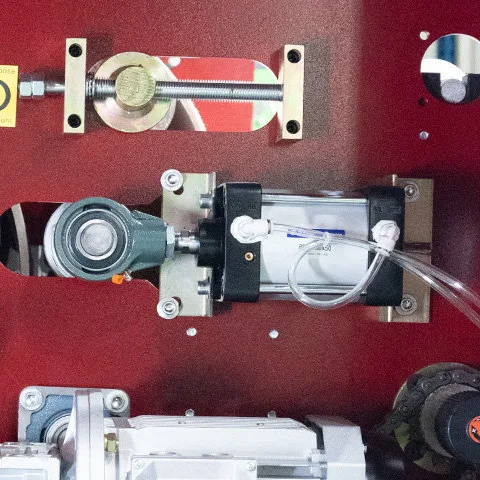

6. Gravity Pressurization Device

The pressure is higher and the transfer speed is greatly improved, ensuring excellent color transfer effect and higher production efficiency.

7. Oil Box

It can automatically store and fill oil to ensure sufficient oil, saving time and effort, and is very convenient.





Parameter

Model	XY-BC1000
Heating Media	High Temperature Resistance Conducting Oil
Voltage	3-Phase 4Line 380V
Heating Power	75kw	85kw
Diameter of Roller Drum*Width	1000x1700mm	1000x1900mm
Transfer Speed	About 800-1000m/h
Temperature	0-250°C
Heating Tube Quantity	42
Transfer Width	1700mm	1900mm
Blanket Dimension	1750mm	1950mm
Bed Dimension	2.4m
Putting Device	3(Fabric Putting/Sublimation Paper/Protection Paper Putting
Collecting Device	3(Finished Sublimation Paper/Fabric /Protection Paper Rewinding)
Gross Weight	3500kg	3800kg
Machine Dimension	4000x2900x1800mm	4000x3100x1800mm
Packing Size	2900x1600x1900mm	3100x1600x1900mm

Description

This sublimation roller has a diameter of 1000mm and is currently our largest roller. It is available in two widths: 1000*1700mm, and 1000*1900mm, and the transfer speed is about 800-1000m/h.

Blanket coverage is over 75%, and larger engraved blankets allow for faster transfers. Equipped with gravity pressurization system, automatic shaft pressure control system, automatic oil lubrication system, etc., it saves time and effort and is more convenient to use.

Sublimation roller heat press machine has a wide range of applications: cloth cutting piece printing, towel blanket plant, men’s wear, women’s wear, children’s wear underwear, sportswear, ball uniforms, swimwear, shoes, mouse pads, various household items, shopping bags, school bags, suitcases, advertising banners, umbrellas, etc.
