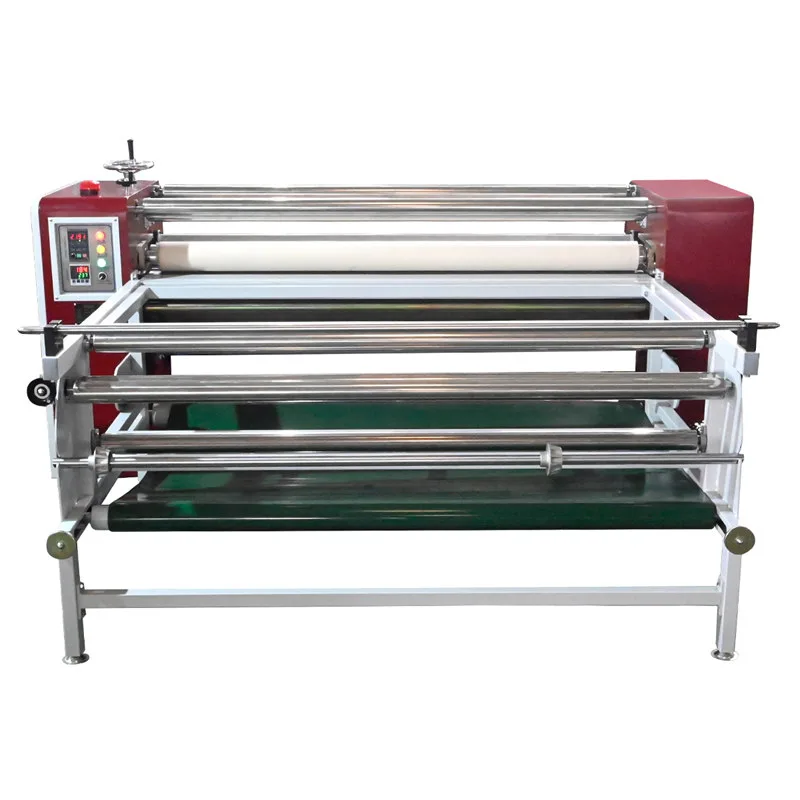

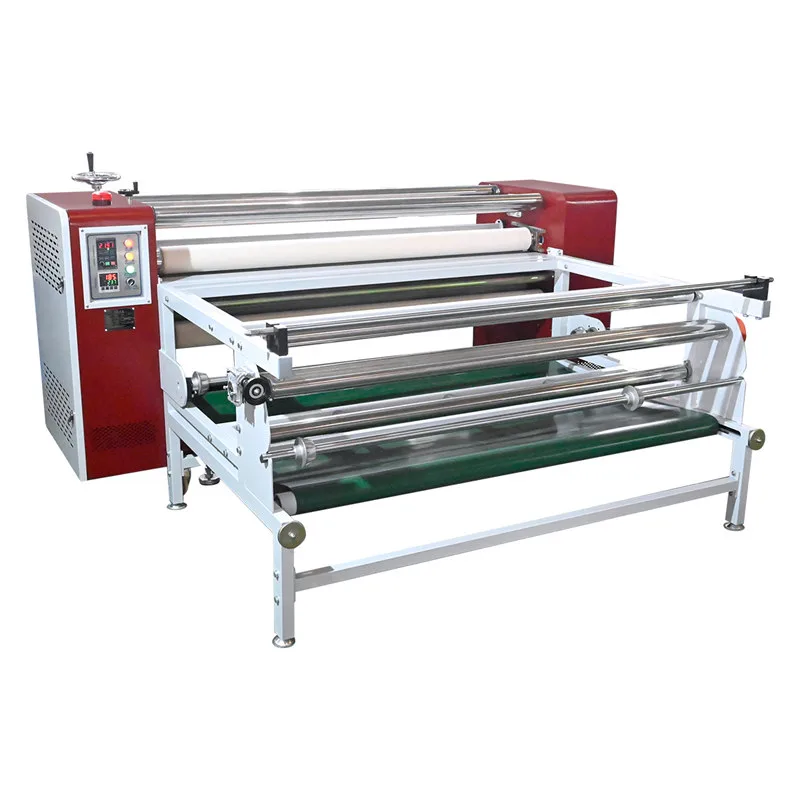

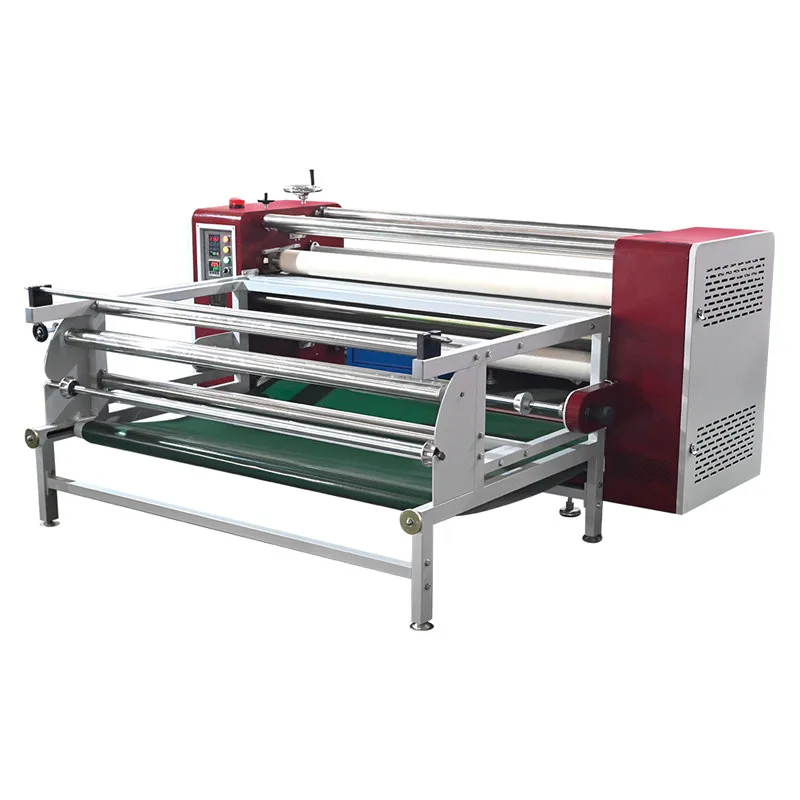

Mini Roll to Roll Heat Press Machine XY-BC200

Major Advantage Highlights

Both roll-to-roll transfer and sheet-to-sheet transfer are possible, one machine for multiple uses.
With a transfer width of 1.7m and a workbench of 1.2m, it is the right size and is the preferred equipment for small factories and a best-selling model overseas.
The operation is simple and easy to learn, and you can quickly master the operating skills.
Low power consumption, fast heating, low cost, and high cost performance.

INQUIRY

Product Details

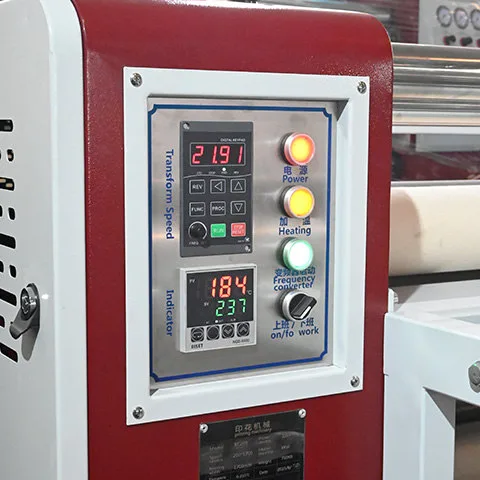

1. Intelligent Control Panel

When the heater temperature drops below 80 degrees, it can accurately control the machine to stop and automatically cut off the power supply, extending the service life of the blanket.

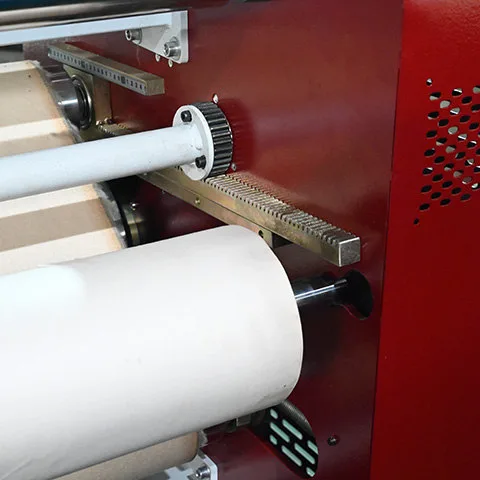

2. Automatic Collecting Paper

Protection paper putting and rewinding, automatically collect and put the protecting paper.

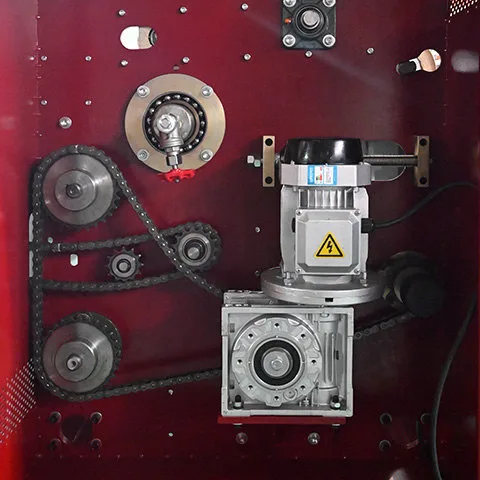

3. Strong Engine

Less noise. Not only can create the transmission force but also improve the comfort of the working environment.

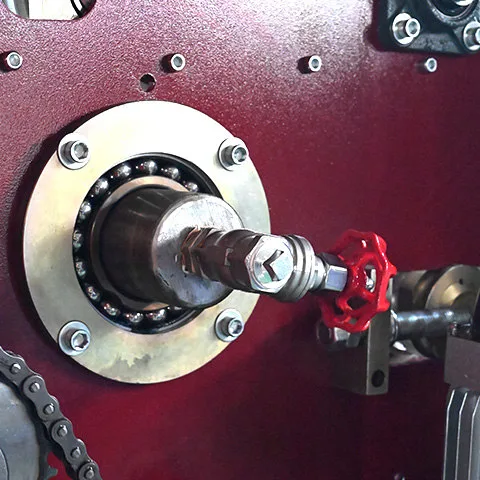

4. 100% Closed Seamless Tube Drum and Oil Inlet

Easy to fill with oil and not easy to volatilize when heated. Stainless steel heating tube directly heats the oil layer, and the temperature rises faster, reaching 200 degrees within 60 minutes.

5. Transfer Paper Tightening Shaft

Fixes the transfer paper, prevents the transfer material from shifting, facilitates more accurate transfer, and reduces unnecessary trouble.

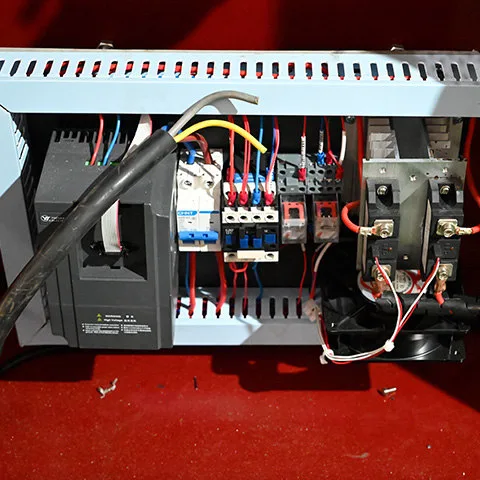

6. Electric Box

The machine’s electric box has stable performance, supports continuous high-intensity operation of the machine, and is highly safe.





Parameter

Model	XY-BC200
Heating Media	High Temperature Resistance Conducting Oil
Voltage	220V 1-Phase
Heating Power	8kw
Diameter of Roller Drum*Width	200x1700mm
Transfer Speed	About 50-60m/h
Temperature	0-250°C
Heating Tube Quantity	One Set Pieces
Transfer Width	1700mm
Blanket Dimension	1750mm
Bed Dimension	1.5m
Putting Device	3(Fabric Putting/Sublimation Paper/Protection Paper Putting
Collecting Device	2(Finished Sublimation Paper/Protection Paper Rewinding)
Gross Weight	750kg
Machine Dimension	2300x2500x1300mm
Packing Size	2570x940x1400mm

Description

The machine has a transfer speed of 50-80m/h, and the transferred pattern is bright, the color is stable, and it is not easy to fade.

Automatic rewinding, transfer speed, rewinding fabric, rewinding transfer paper, and protective paper speed can be adjusted. The required speed can be adjusted according to the thickness and length of the transfer fabric to achieve the best transfer effect.

Wide range of applications: Whole roll transfer of large pieces of fabrics such as various cotton fabrics, denim fabrics, bed sheets, curtains, pillows, blankets, etc. Advertising space, etc. Travel luggage series, backpacks, suitcases, etc. It is also applicable to the transfer of small pieces of fabrics such as uppers, t-shirts, mouse pads, etc.
