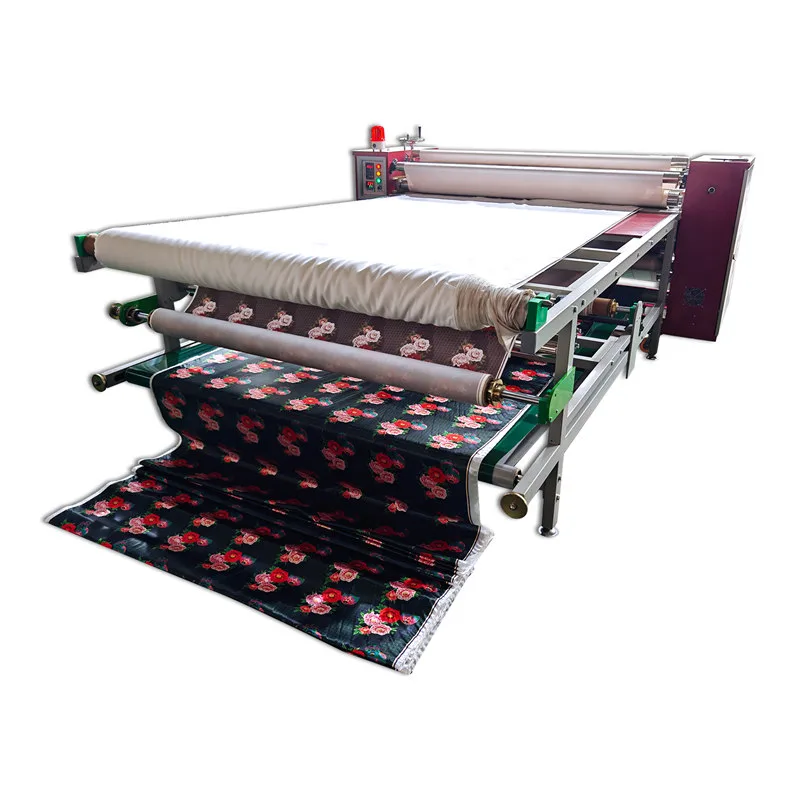

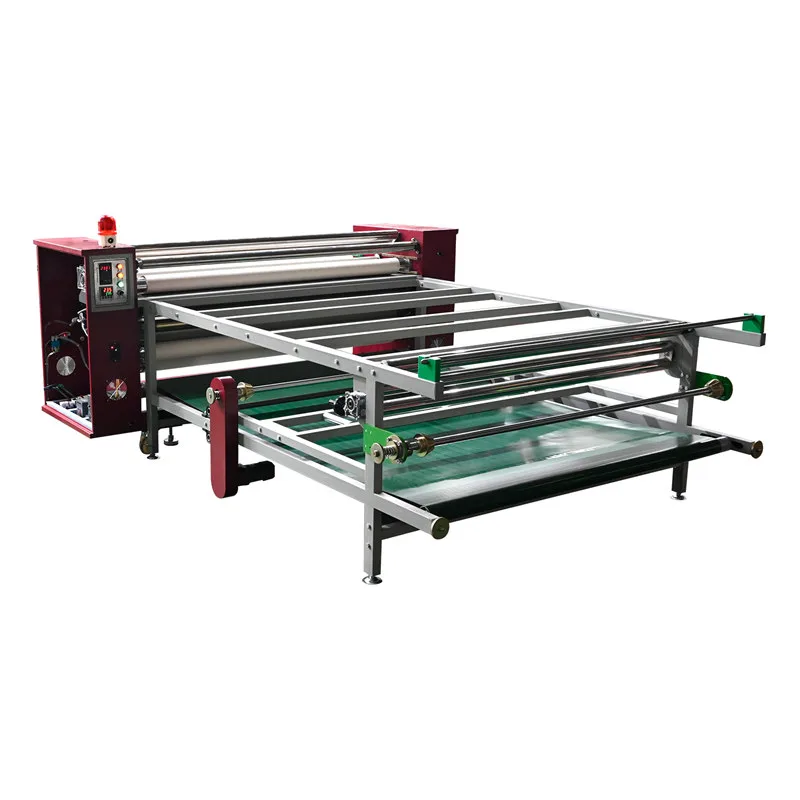

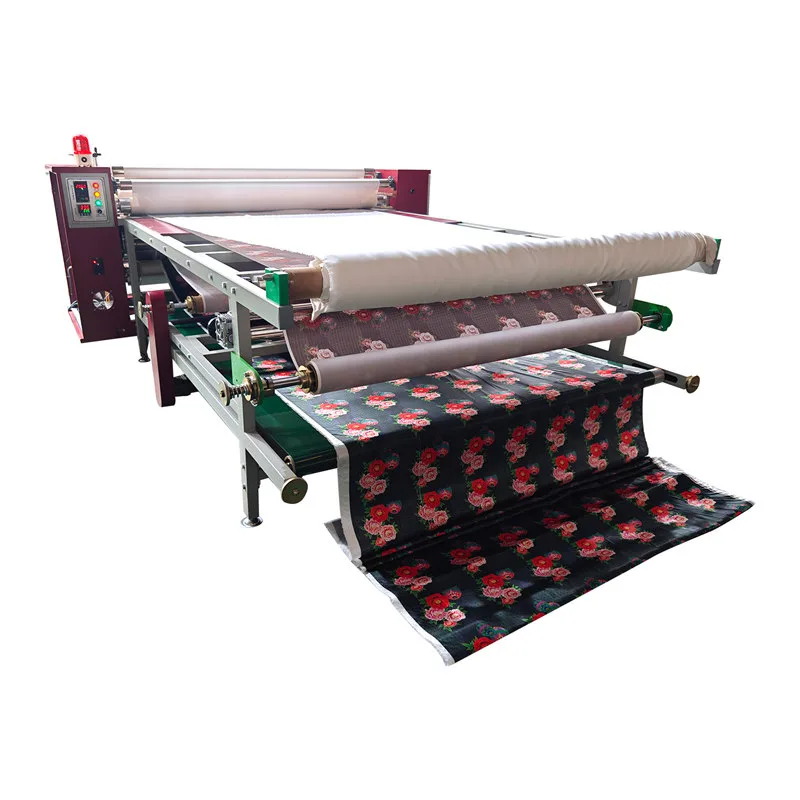

Simplified Heat Transfer Roller Machine XY-BC270

Major Advantage Highlights

The transfer efficiency is high, and 50-60m can be transferred per hour.
The transfer effect is good, the transfer pattern is bright and colorful, and the color can be maintained for a long time.
Adopting new technology, imported component control, excellent quality, and can work continuously for a long time.
Adopting synchronization rod adjustment, automatically correcting the position of the blanket, ensuring that the blanket fits the roller perfectly, and achieving the best transfer effect.
The pneumatic pressurization system design makes the rotary printing machine transfer perfect.

INQUIRY

Product Details

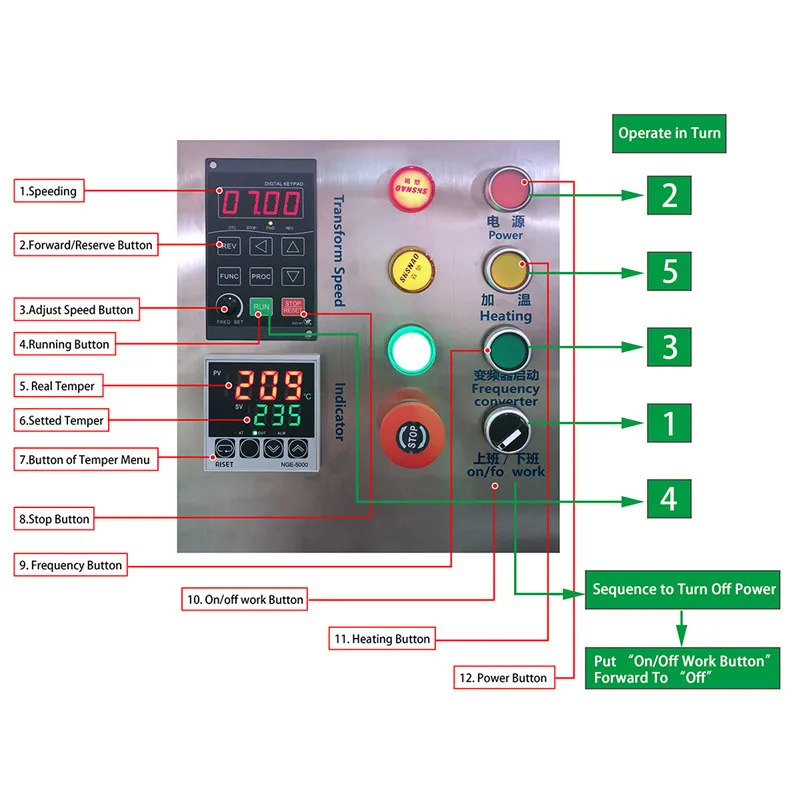

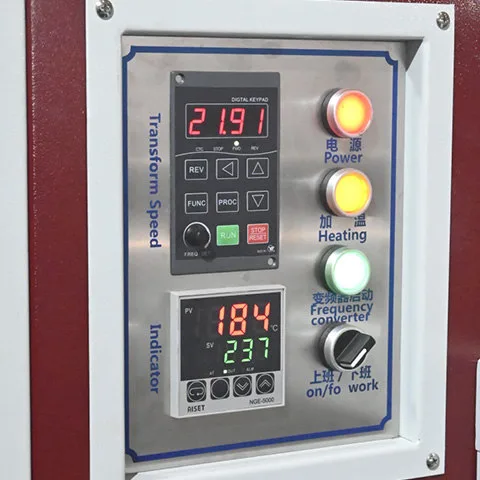

1. Intelligent Control Panel

The frequency converter can accurately control the conveying speed and adjust the temperature and time separately.

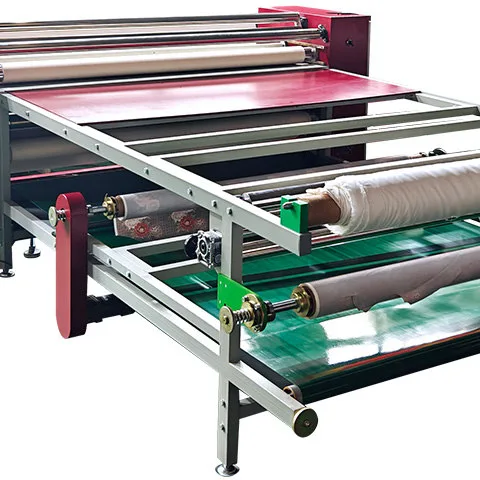

2. With 2.4m Large Workbench

The large workbench is more efficient.

3. Blanket Manual Tense Device

The convenient manual blanket return device design allows the blanket to be adjusted at any time according to the position.

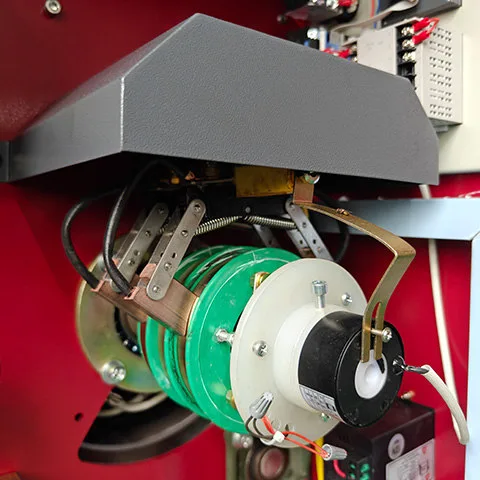

4. Carbon Brush Conduct Ring and Electromagnetic

Carbon brush type collector ring can work continuously for 24 hours, with stable current transmission and high safety.

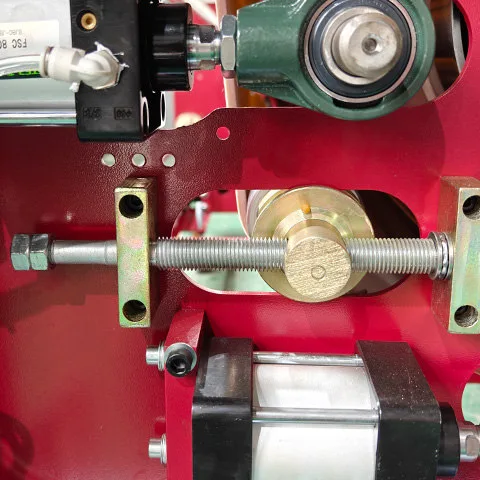

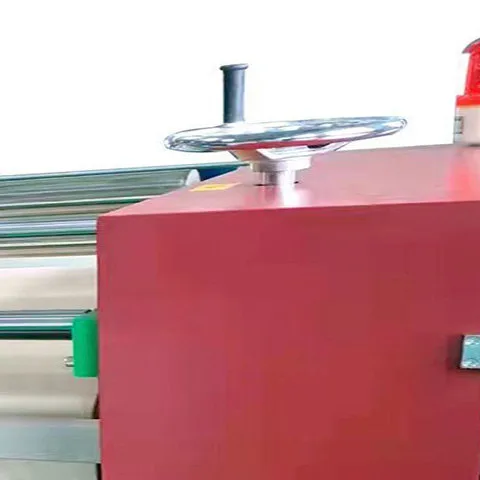

5. Synchronous Rod Adjustment

Ensure that the pressure of the blanket and the heating roller is consistent every time.

6. Detachable Blanket Belt

Completely solves the problem of blanket belt heat dissipation during shutdown or power outage.





Parameter

Model	XY-BC270
Heating Media	High Temperature Resistance Conducting Oil
Voltage	3-Phase 4Line 220V/380V
Heating Power	11kw	16kw
Diameter of Roller Drum*Width	270x1200mm	270x1700mm
Transfer Speed	About50-60m/h
Temperature	0-250°C
Heating Tube Quantity	9
Transfer Width	1200mm	1700mm
Blanket Dimension	2150mm	1750mm
Bed Dimension	2.4m
Putting Device	3(Fabric Putting/Sublimation Paper/Protection Paper Putting
Collecting Device	2(Finished Sublimation Paper/Protection Paper Rewinding)
Gross Weight	800kg	1000kg
Machine Dimension	3300x2050x1350mm	3300x2550x1350mm
Packing Size	2150x950x1400mm	2650x950x1400mm

Description

The machine is designed to save both labor and time, making it an ideal solution for high-volume production environments. Its transfer speed can reach 50-60m/h, and the appropriate speed can be selected according to the type and thickness of the fabric.

Good transfer effect, the color after transfer is beautiful and environmentally friendly, and the color lasts for a long time.
