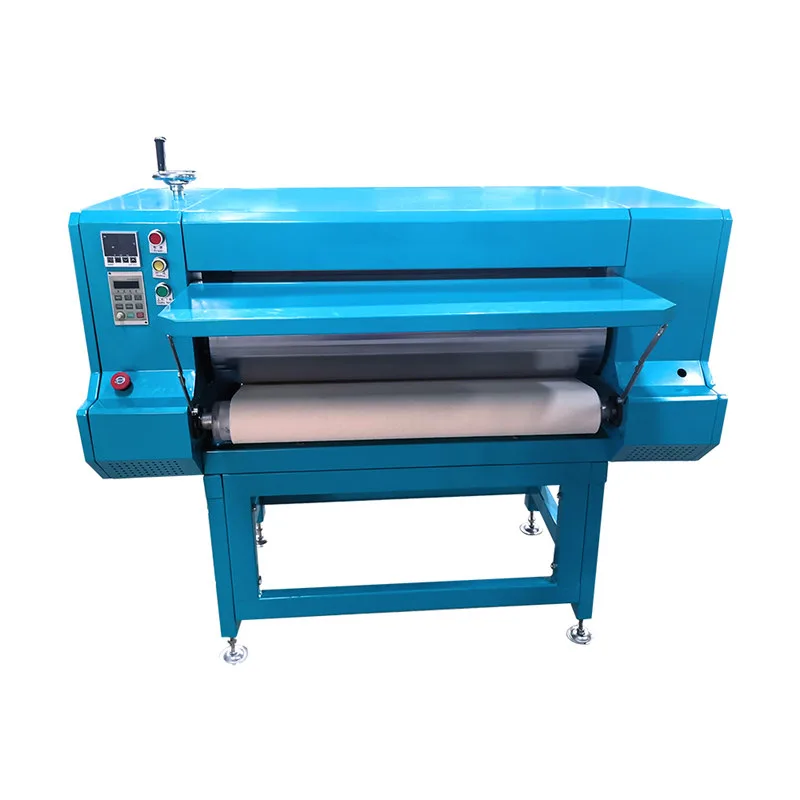

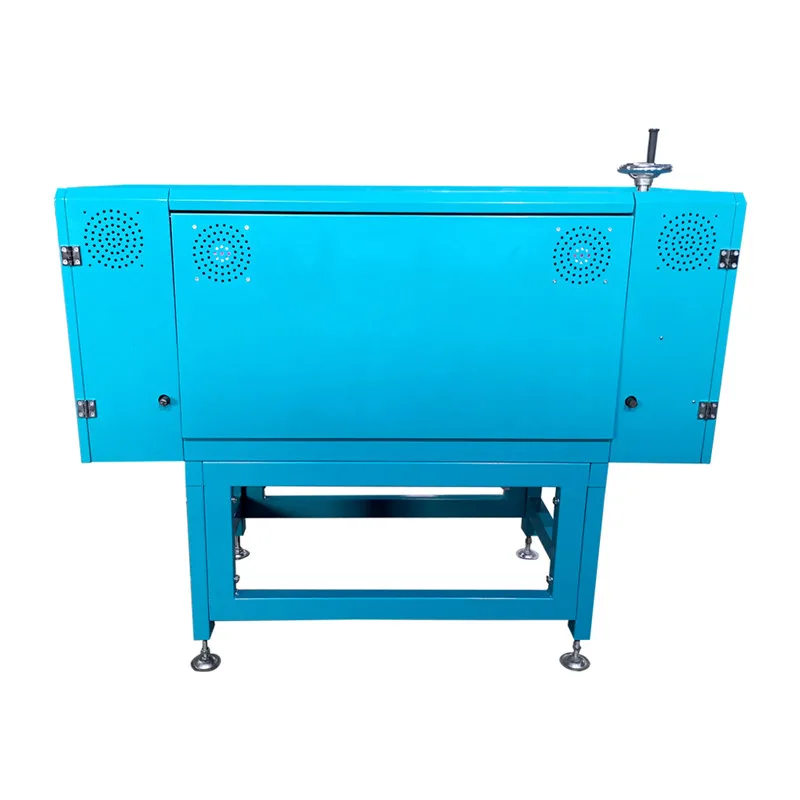

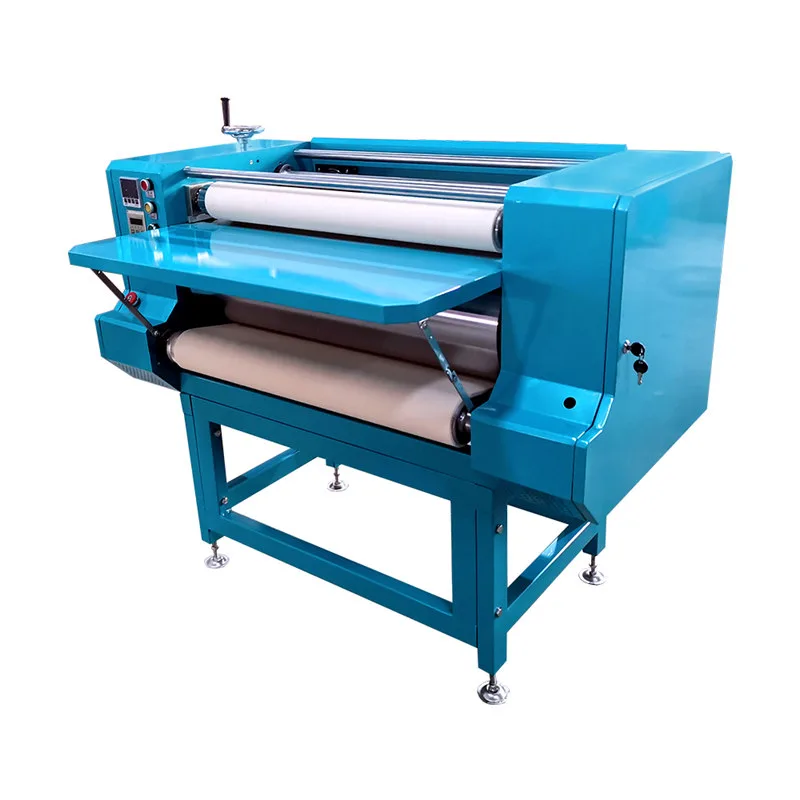

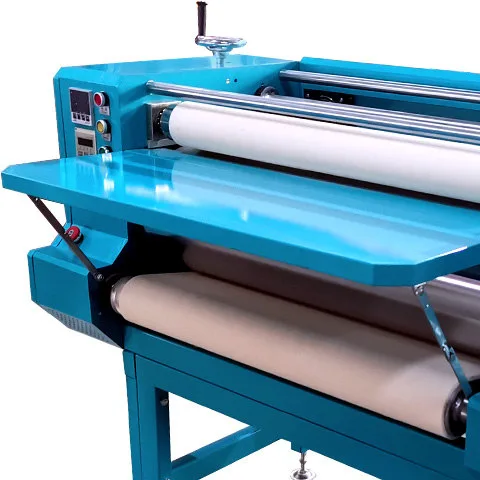

Mini Heat Press Roller Machine XY-BC270X

Major Advantage Highlights

70cm transfer width, sheet-to-sheet transfer, is an excellent choice for design studios such as clothing fabrics.
The machine consumes less power, heats up quickly, has high efficiency, low transfer cost and high cost performance.
Oil temperature roller heating, good transfer effect, uniform color, beautiful and lasting.
Easy to operate, intelligent control of roller machine transfer temperature and speed.

INQUIRY

Product Details

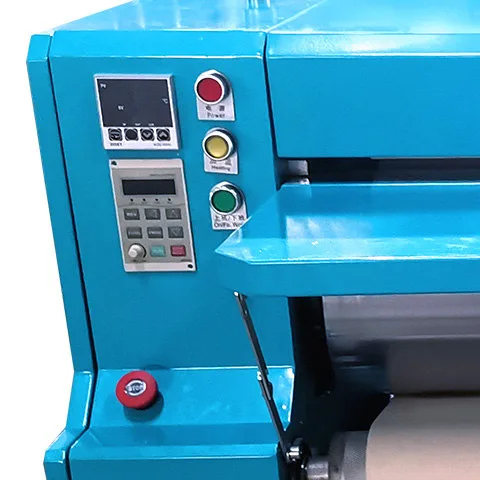

1. Intelligent Controller

Easy to operate, time and speed can be controlled. Equipped with an emergency stop device, which is safer.

2. Mini Size of Blanket and Machine

The size is 270*700mm, very suitable for shops to make samples/pieces.

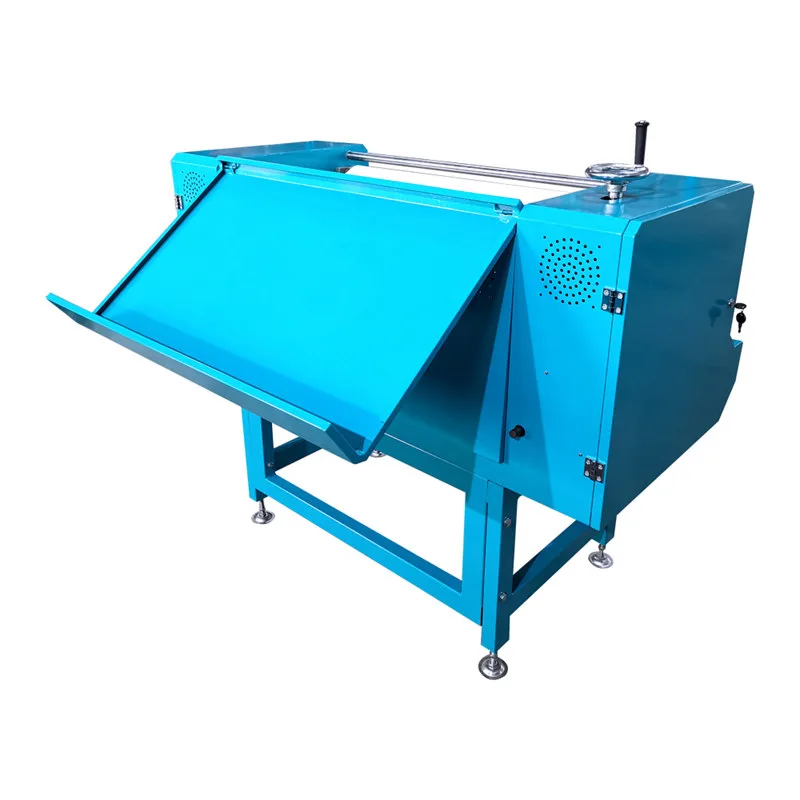

3. Folding Workbench

You can fold up the countertop, save space.

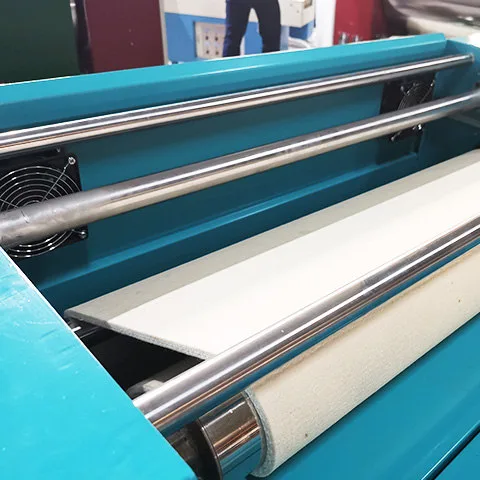

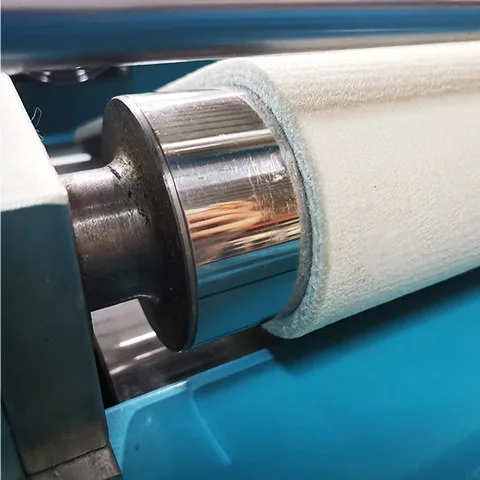

4. Good Blanket

The blanket is made of polyester spiral king as the base, 70% aramid, 30% base cloth high-temperature material.

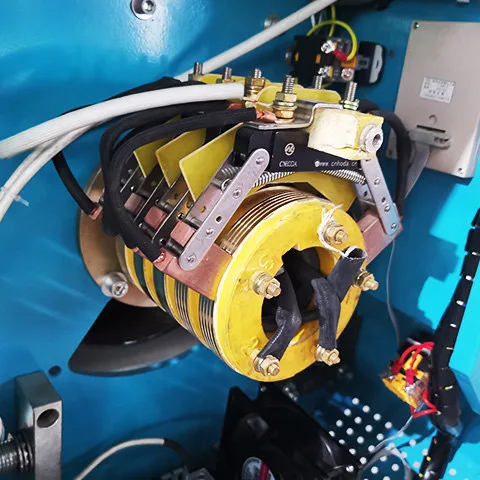

5. Carbon Brush Type Collector Ring

Ensures high quality, stable current transmission, high safety, making the machine performance more stable and supporting long-term work.





Parameter

Model	XY-BC270X
Heating Media	High Temperature Resistance Conducting Oil
Voltage	220V
Heating Power	6kw
Diameter of Roller Drum*Width	270x700mm
Temperature	0-250°C
Heating Tube Quantity	8
Transfer Width	700mm
Blanket Dimension	80cm
Roller Length	90cm
Bed Dimension	No Bench, Save Space
Machine Dimension	90140110cm
Packing Size	70145115cm

Description

The roller diameter is 270mm and the transfer width is 700mm, which is suitable for transfer of various fabrics. The transfer speed can reach 50-60m/h.

Wide range of applications: air cushion film, curtains, pillows, floor mats, scarves, silk scarves, fashion, bedding, bags, sofa covers, etc., thermal transfer of sheet-to-sheet materials such as swimwear, sportswear, mouse pads, etc.
