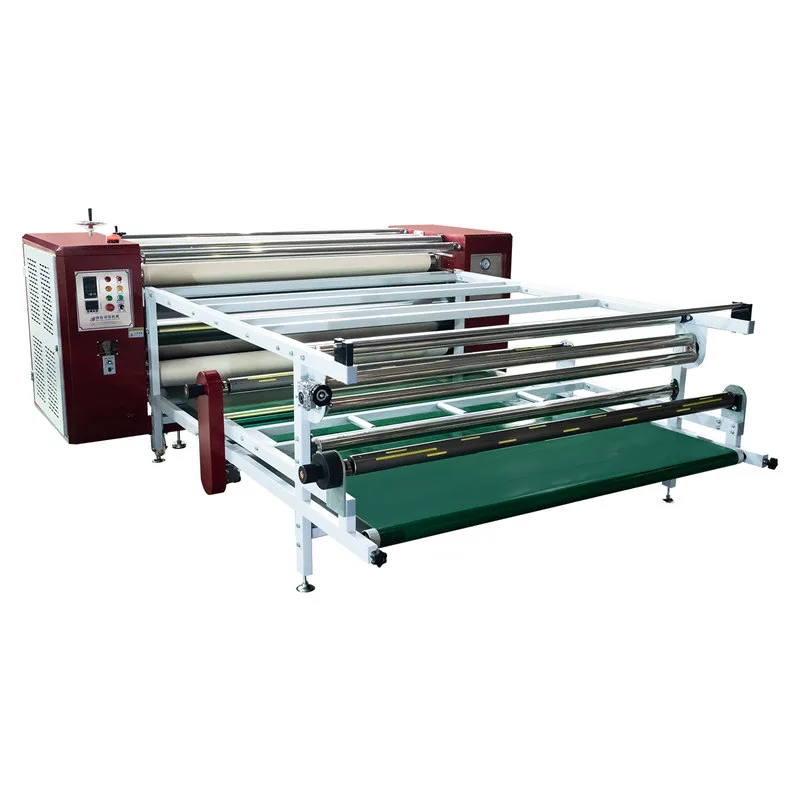

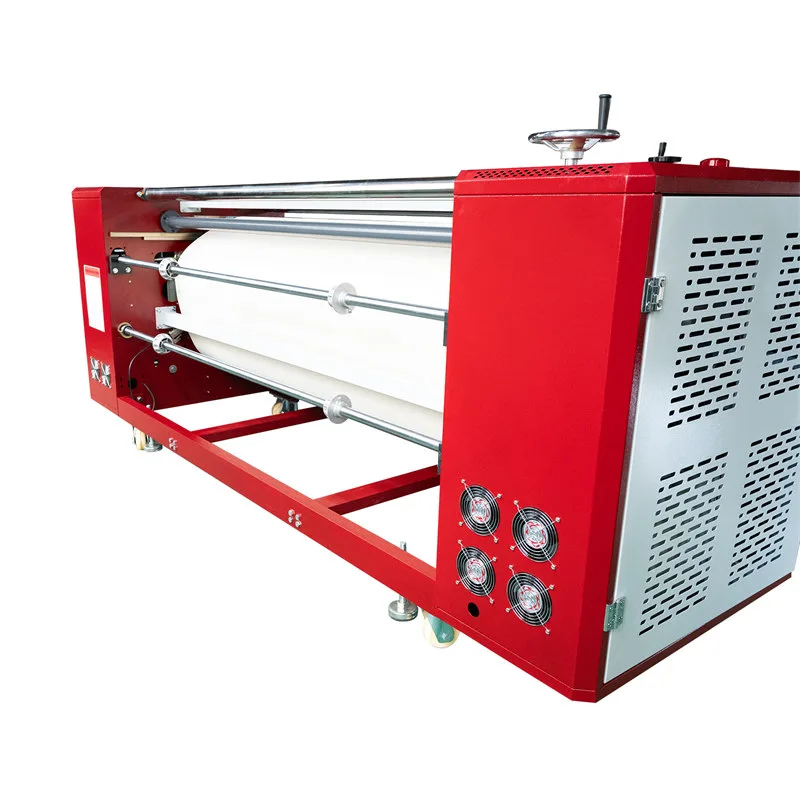

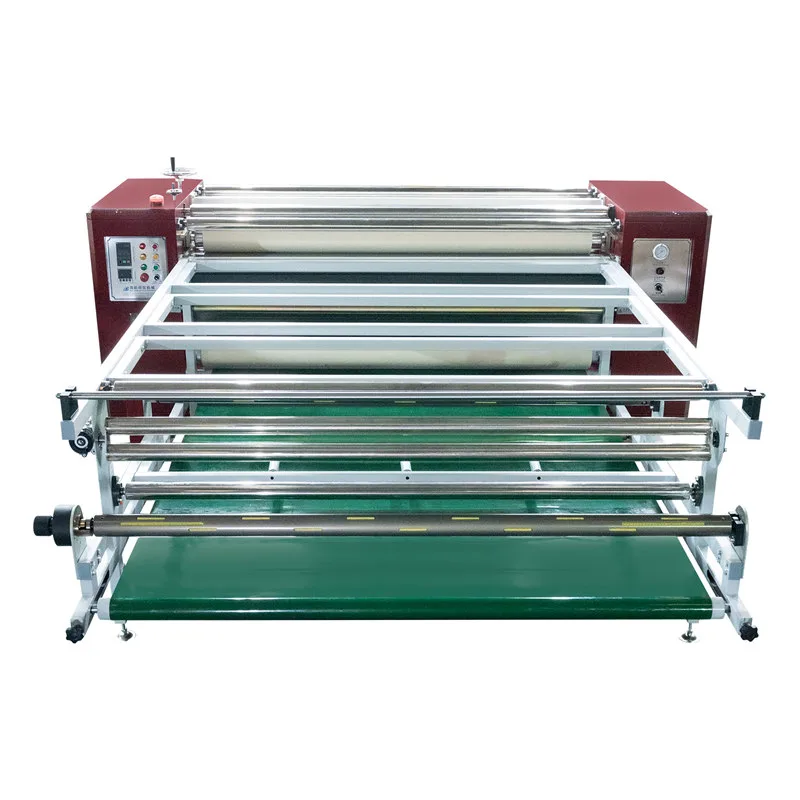

Multifunctional Heat Roller Press Machine for Fabric XY-BC420

Major Advantage Highlights

420mm roller diameter, faster and more efficient thermal transfer, supports roll-to-roll transfer and single-sheet transfer.
The pneumatic pressurization system makes the transferred fabric more colorful and the ink penetration shallower.
The blanket belt is detachable, which completely solves the problem of blanket belt cooling during shutdown or power outage, better protects the blanket belt and extends its service life.
Automatic finished fabric rewinding is more convenient and quick to use, saving labor costs and time, and is suitable for large-scale fabric transfer.

INQUIRY

Product Details

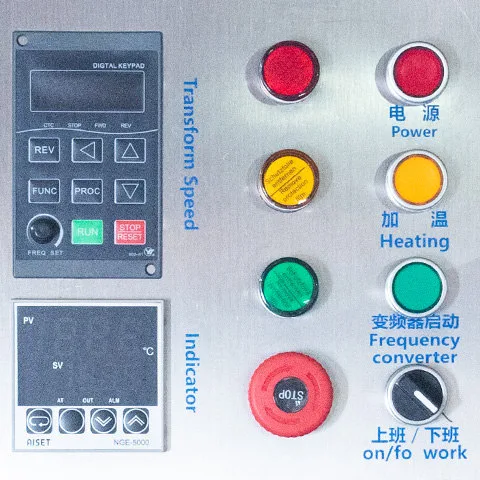

1. Intelligent Controller Panel

Easy to accurately control speed, time and temperature.

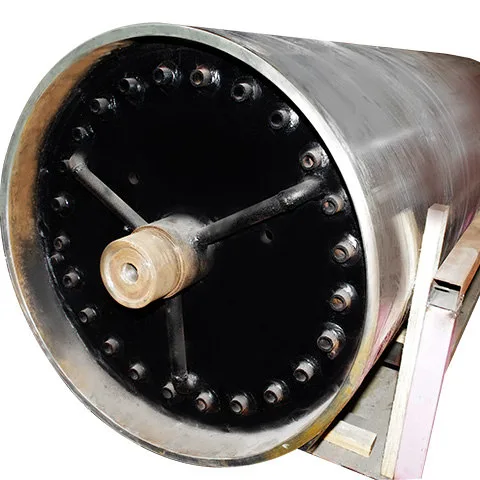

2. Double Heating Cylinder

Seamless tube roller, the outer circle of the roller is made by precision lathe and then plated with hard chrome to ensure the consistent temperature of each point.

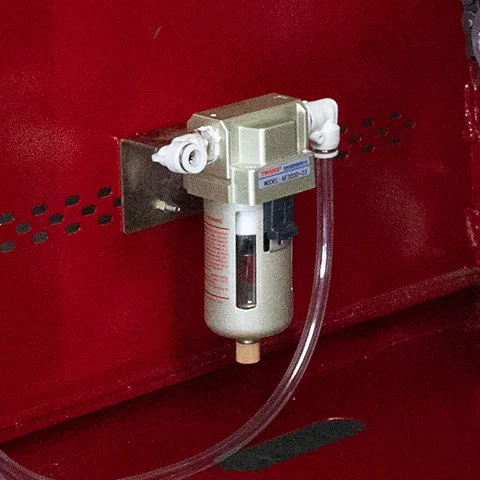

3. Double Pneumatic Pressurization System

Makes the color more vivid, the air permeability stronger, and the production speed faster.

4. Manual Tension Wheel

Allows the blanket belt to be manually separated to help the blanket dissipate heat.

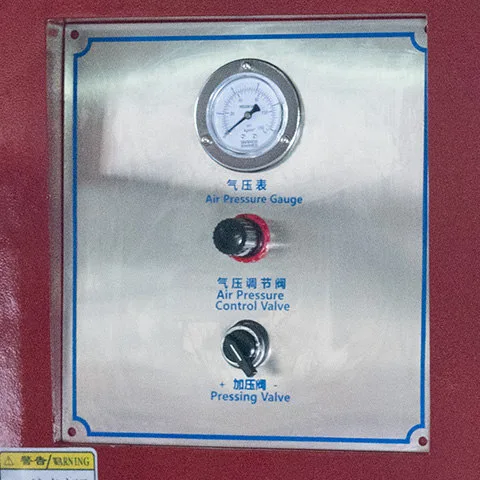

5. Independent Pressure Control System

The air pressure can be independently and precisely monitored and regulated.

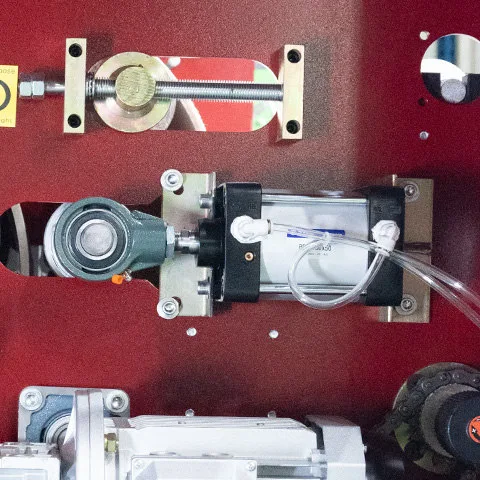

6. Cylinder Pressure Device

With this cylinder pressure device, the blanket is not easy to deviate.





Parameter

Model	XY-BC420
Heating Media	High Temperature Resistance Conducting Oil
Voltage	3-Phase 4Line 220V/380V
Heating Power	22kw	32kw	36kw
Diameter of Roller Drum*Width	420x1200mm	420x1700mm	420x1900mm
Transfer Speed	About 100-130m/h
Temperature	0-250°C
Heating Tube Quantity	18
Transfer Width	1200mm	1700mm	1900mm
Blanket Dimension	1250mm	1750mm	1950mm
Bed Dimension	2.4m
Putting Device	3(Fabric Putting/Sublimation Paper/Protection Paper Putting)
Collecting Device	2(Finished Sublimation Paper/Protection Paper Rewinding)
Gross Weight	1500kg	1800kg	2000kg
Machine Dimension	3500x2300x1350mm	3500x2800x1350mm	3500x3000x1350mm
Packing Size	2400x1100x1400mm	2900x1100x1400mm	3100x1100x1400mm

Description

This roller press machine has high-speed transfer, the transfer speed can reach 100-130m/h. The appropriate speed can be selected according to the type and thickness of the fabric.

Moreover, the oil temperature heating roller heats up quickly and has a good transfer effect. The color after transfer is more beautiful and environmentally friendly, and the color lasts longer.
