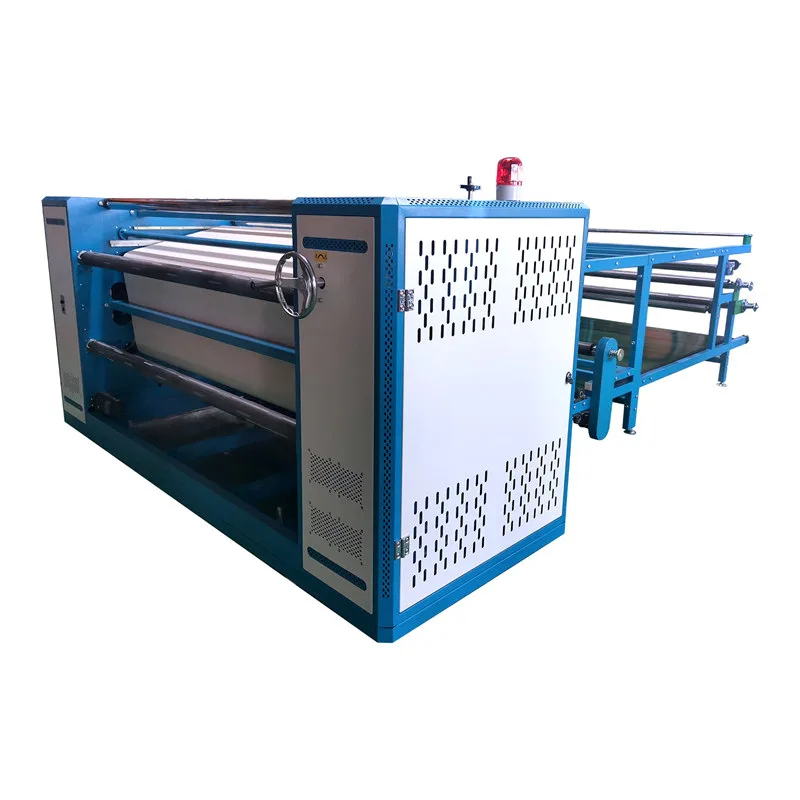

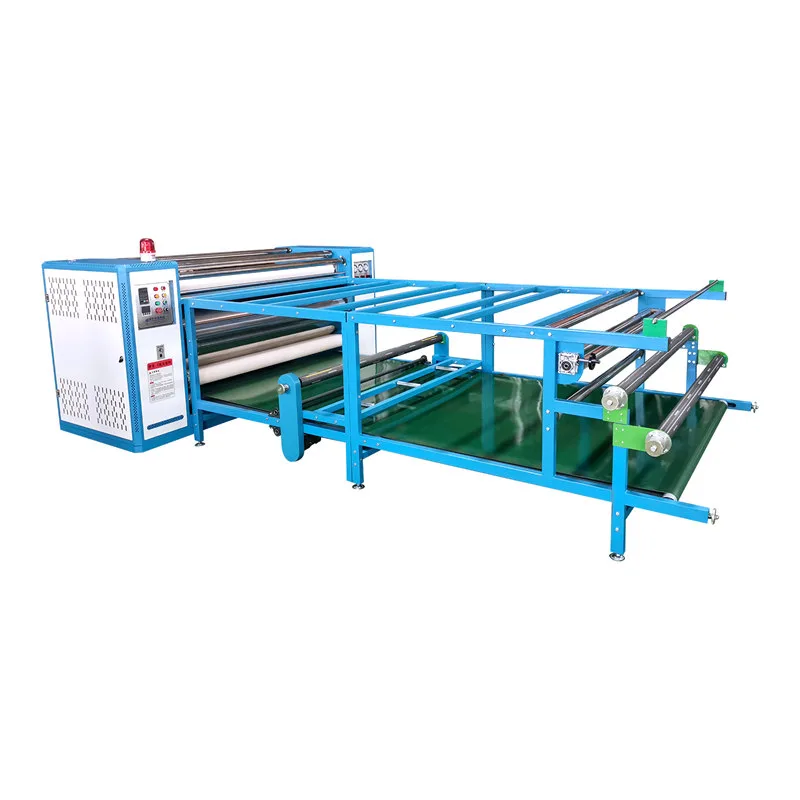

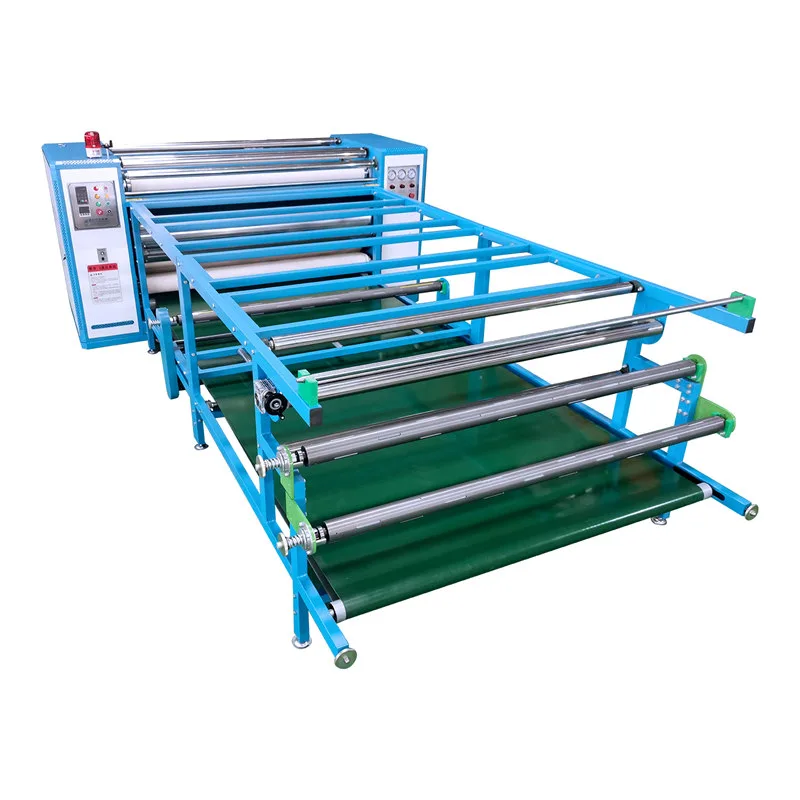

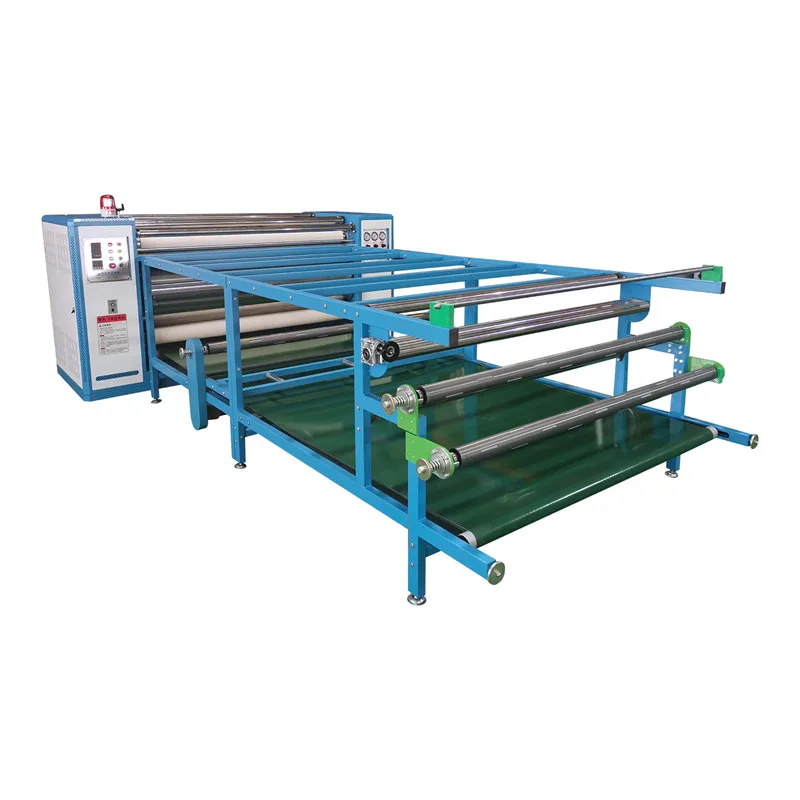

High Speed Rotary Heat Press XY-BC600

Major Advantage Highlights

The adjustable speed motor rewinding is matched with the pneumatic shaft, which is simple and fast to operate, improves production efficiency, automatically rewinds the finished fabric, and saves labor costs and time.
The pneumatic pressurization system has a better transfer effect. The transferred fabric is more colorful and the ink permeability is shallower, which is very suitable for customers with high requirements for fabric color and pattern.
Convenient, efficient, and low-cost. High-speed transfer, the transfer speed can reach 320m/h, and the most suitable speed can be set according to the type and thickness of the fabric.

INQUIRY

Product Details

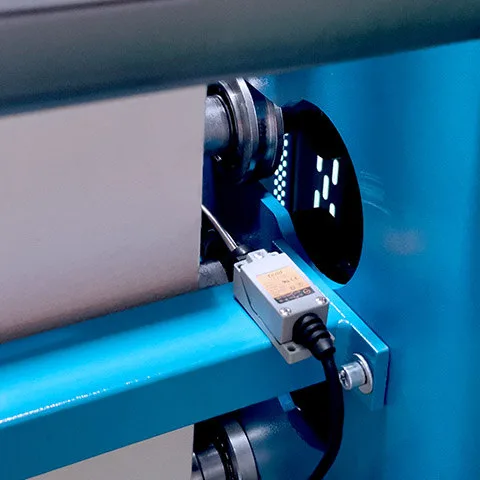

1. Blanket Automatic Correction

The offset of the blanket touches the automatic correction switch, which can help correct the edge of the blanket without manual adjustment.

2. Double Drum Heating

It is very convenient to add heat transfer oil, and it has the unique advantage of automatic valve closing to prevent smoke, and has high safety performance.

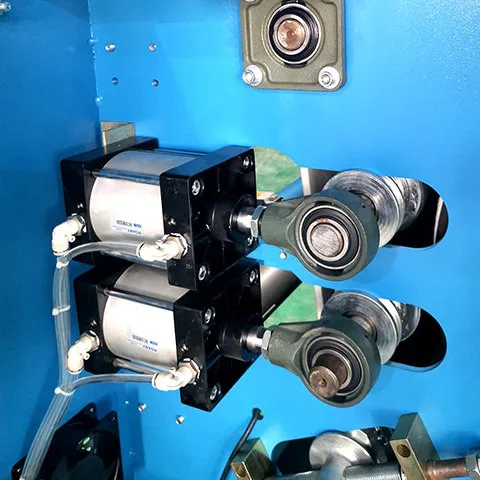

3. Dual Pneumatic Pressurization System

Easy to control and adjust the air pressure of the machine.

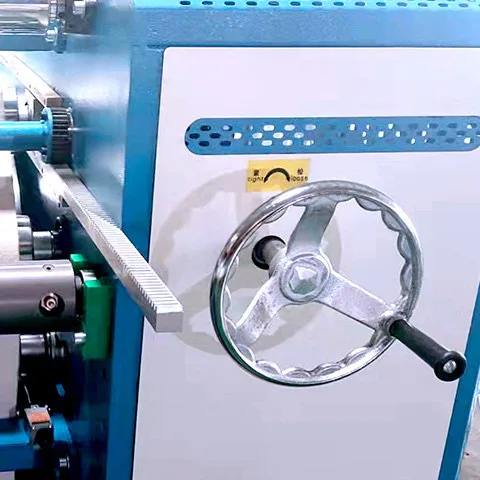

4. Felt and Roller Separation

Manual rocker, when power is off, the blanket is pulled out by the manual rocker.

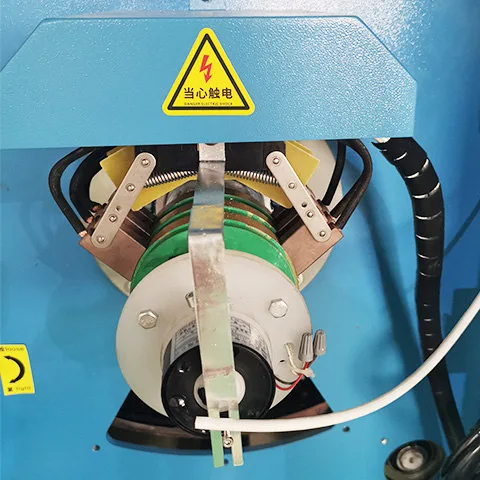

5. Integrated Conductive Ring

When the machine is running, the carbon brush contacts the collector ring to generate heat, and the thermocouple detects the roller temperature and transmits the data to the temperature control meter.

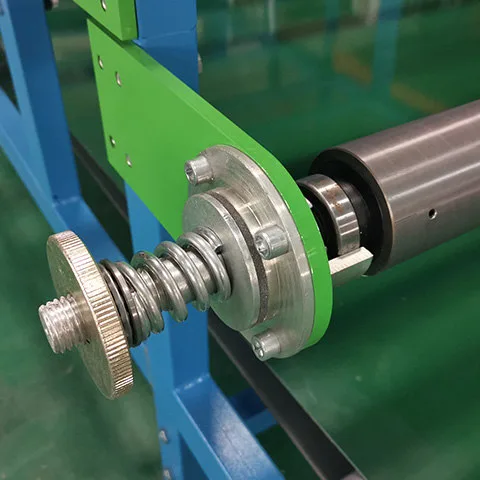

6. Inflatable Shaft Retractable

The machine adopts the function of three openings and three closings, and each inflatable shaft is equipped with a torque device.





Parameter

Model	XY-BC600
Heating Media	High Temperature Resistance Conducting Oil
Voltage	3-Phase 4Line 380V
Heating Power	28kw	43kw	48kw
Diameter of Roller Drum*Width	600x1200mm	600x1700mm	600x1900mm
Transfer Speed	About 320m/h
Temperature	0-250°C
Heating Tube Quantity	27
Transfer Width	1200mm	1700mm	1900mm
Blanket Dimension	1250mm	1750mm	1950mm
Bed Dimension	2.4-3.5m
Putting Device	3(Fabric Putting/Sublimation Paper/Protection Paper Putting
Collecting Device	3(Finished Sublimation Paper/Fabric /Protection Paper Rewinding)
Gross Weight	1500kg	1800kg	2000kg
Machine Dimension	4600x2300x1500mm	4600x2800x1500mm	4600x300x1500mm
Packing Size	2400x1200x1700mm	2900x1200x1700mm	3100x1200x1700mm

Description

The dual-display automatic lubricating oil injection system can inject lubricating oil at a fixed time and quantity to keep the machine bearings lubricated, increase the bearing service life, and save time and worry.

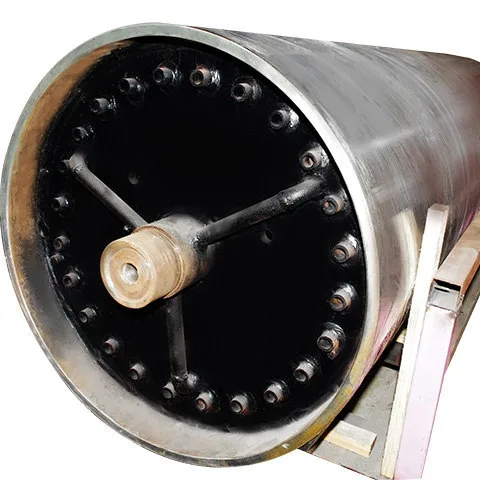

Sealed oil-heated roller, available in three sizes: 600*1200mm/600*1700mm/600*1900mm, automatic winding device, equipped with two air shafts and 27 heating tubes.

Wide range of applications: transfer printing on various fabrics, clothing fabrics, advertising slogan materials, bag materials, shoe materials, etc., suitable for transfer printing on thick and thin fabrics.
