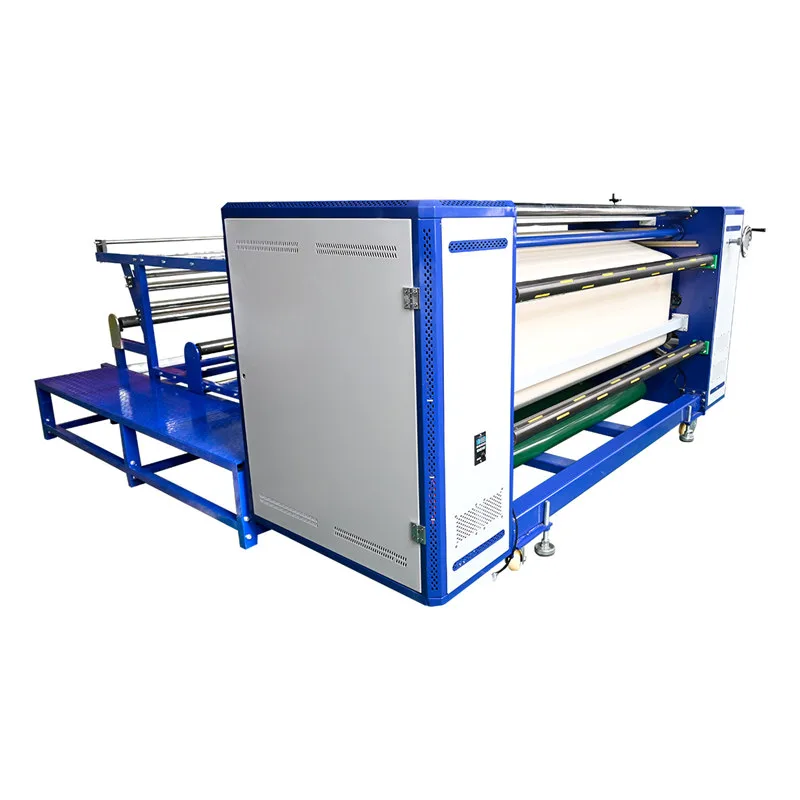

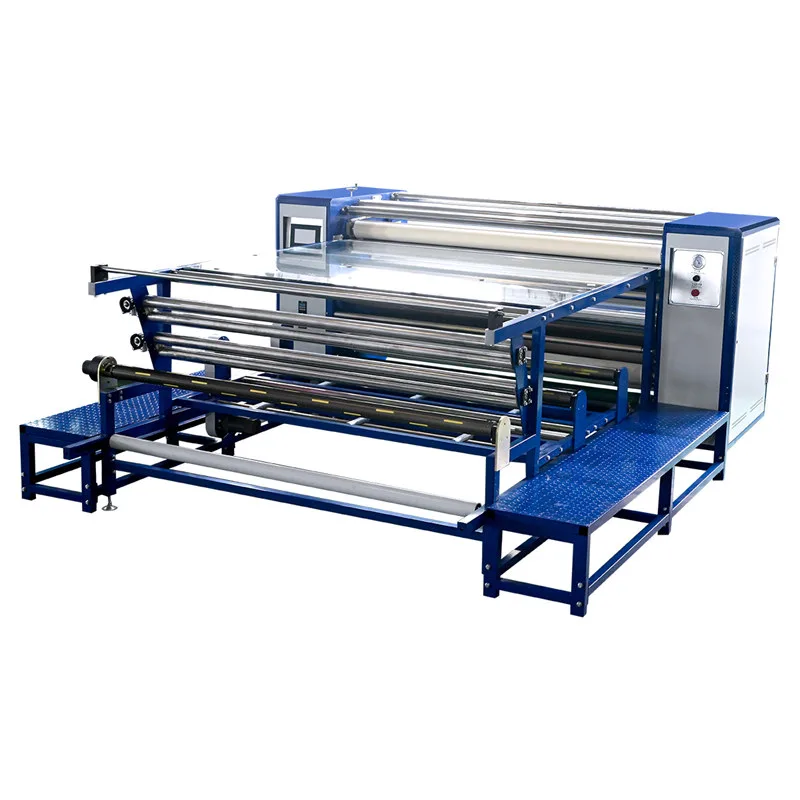

High Speed Sublimation Rotary Heat Press Machine XY-BC600x1900

Major Advantage Highlights

LCD controller, more accurate and easier to operate, saving training costs.
Dual pneumatic pressure system, faster transfer speed, can reach 320m/h, with brighter colors and stronger transparency.
The machine has stable quality, good performance, low maintenance cost, low production cost and is very affordable.

INQUIRY

Product Details

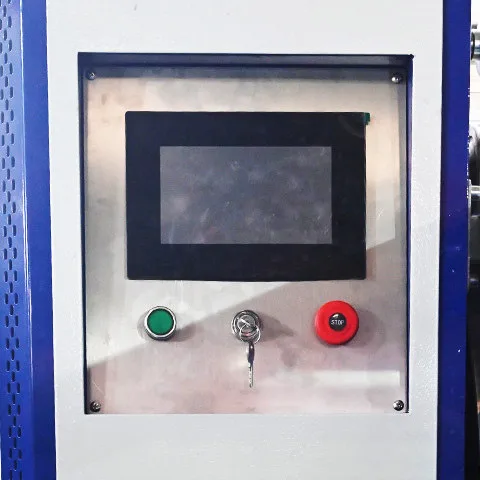

1. Screen Display Controller

Temperature control LCD instrument, easy to operate, digital intelligent control machine, precise control.

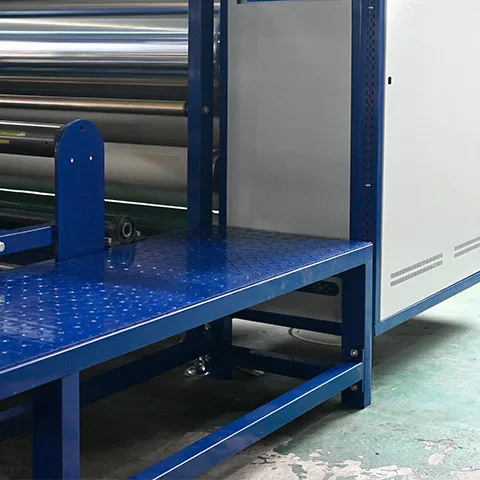

2. With Stand

There is a stand next to the workbench for piece-to-piece printing, also can roll-to-roll printing.

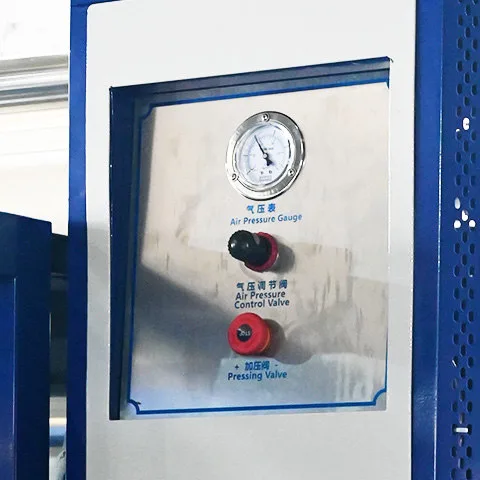

3. Pneumatic Pressure Valve Control Panel

Independent pneumatic pressure valve control panel, observe the pressure at any time, to adjust the pressure at any time, and improve the efficiency and quality of transfer.

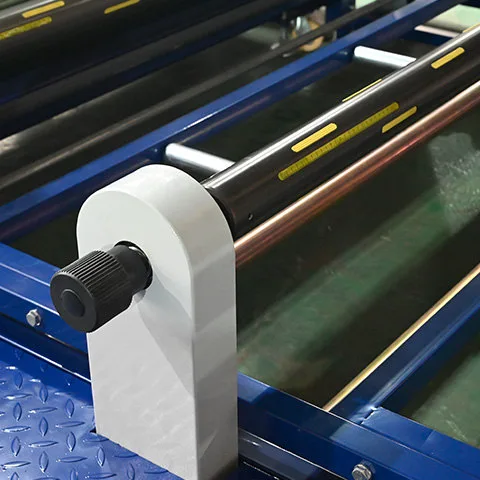

4. Paper Collection and Protection Shaft

The braking torque speed regulating motor is used to make the paper collection more neat and tight.

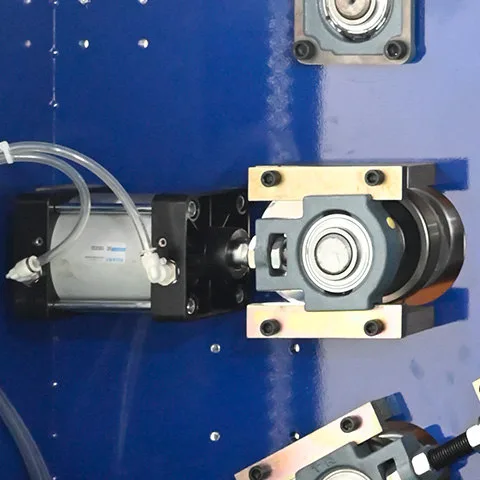

5. Double Pneumatic Pressure System

The transfer cloth color is brighter and the production speed is faster.





Parameter

XY-BC600x1900

High Temperature Resistance Conducting Oil

380V(3-Phase 4 Line)

48kw

600x1900mm

About 320m/h

0-250°C

1900mm

1950mm

2.4-3.5m

3(Fabric Putting/Sublimation Paper/Protection Paper Putting

3(Finished Sublimation Paper/Fabric /Protection Paper Rewinding)

2000kg

4600x300x1500mm

3100x1200x1700mm

Description

Sealed oil-heated roller, the size of this model is 600*1900mm, with automatic winding device, two air shafts and 27 heating tubes, and the conveying speed is about 250-350m/h.

Adopt scientific design, three put two collect (three put: fabric, transfer paper, protective paper; two collect: fabric, protective paper), equipment is more convenient operation. Double oil barrel, 100% fully heated oil, surface temperature ± 1-2℃.

Wide range of applications: various fabric transfers, clothing fabrics, household fabrics, advertising slogan materials, bag materials, shoe materials, etc., suitable for transfers of thick and thin fabrics.

We can match a complete transfer solution for you according to your needs. We provide various thermal transfer machines and materials, such as wide-format printing series, DTF series, thermal transfer paper, transfer blank fabrics, DTF/UV consumables, and other thermal transfer consumables, etc.
