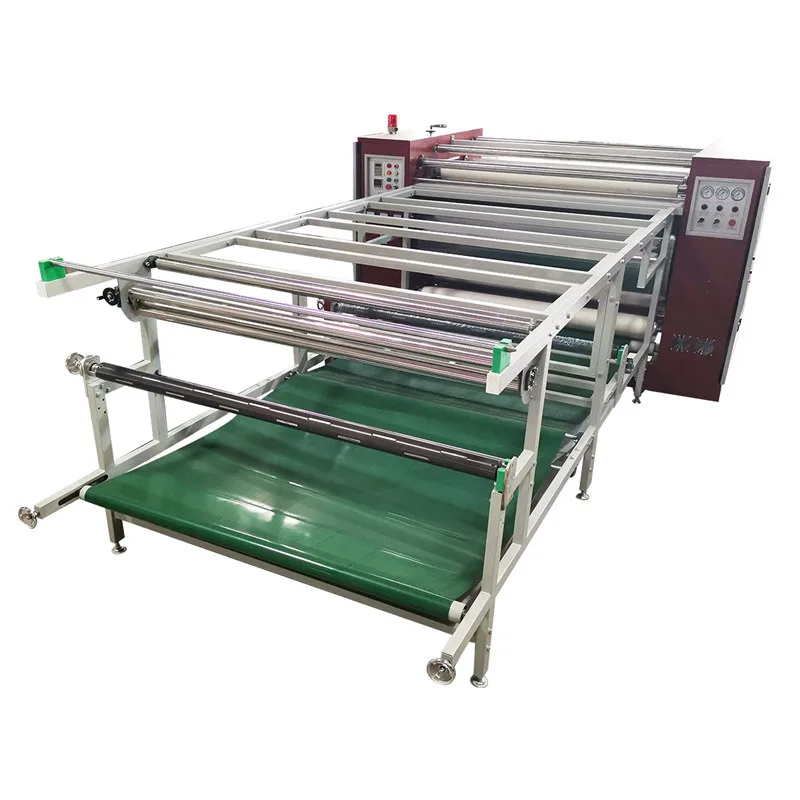

High Speed Roller Heat Press XY-BC800

Major Advantage Highlights

This model delivers high-speed transfers with speeds of 350-450m/h, allowing you to adjust the speed to suit different fabric types and thicknesses for optimal results.
Designed with energy-saving frequency conversion technology, this model can help reduce electricity costs by up to ¥5000 per year.
Equipped with an automatic take-up device for finished fabric, it saves both time and space.

INQUIRY

Product Details

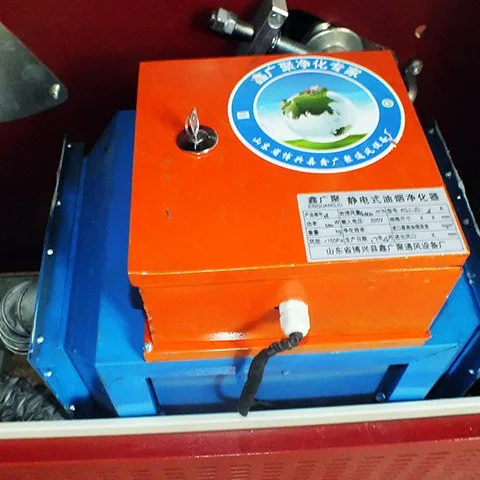

1. Exhaust/Fume Purifier System

Equipped with an electrostatic fume purifier and a built-in fume extraction purification system to ensure comfortable air in the environment, which is more environmentally friendly and healthy.

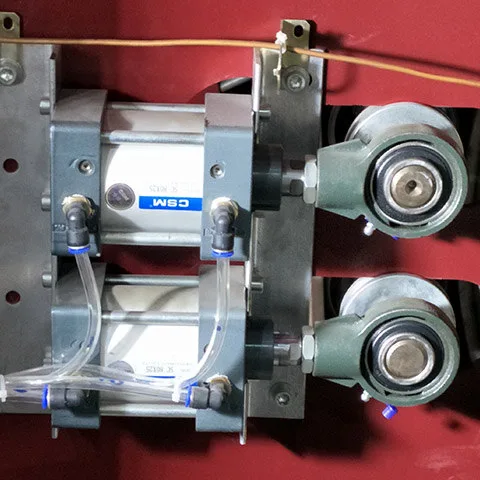

2. Double Pneumatic Pressure System

Ensures excellent color transfer effect and higher production efficiency. It makes the color brighter, the permeability stronger and the production speed faster.

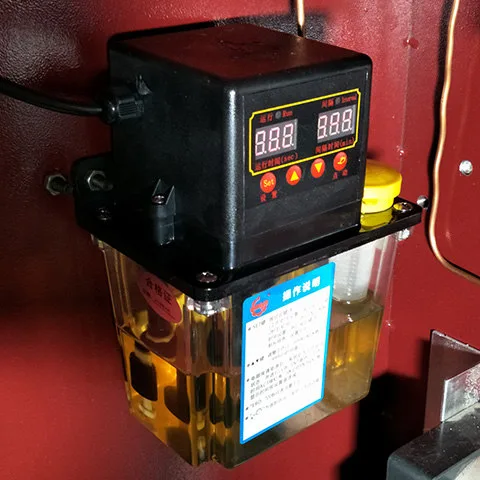

3. Dual-display Automatic Oil-Lubricating System

It can inject lubricating oil quantitatively to maintain the lubrication state of the bearing, increase the service life of the bearing, and save time and effort.





Parameter

Model	XY-BC800
Heating Media	High Temperature Resistance Conducting Oil
Voltage	3-Phase 4Line 380V
Heating Power	36kw	54kw	60kw
Diameter of Roller Drum*Width	800x1200mm	800x1700mm	800x1900mm
Transfer Speed	About 400-500m/h		About 600-700m/h
Temperature	0-250°C
Heating Tube Quantity	33(3Spare)
Transfer Width	1200mm	1700mm	1900mm
Blanket Dimension	1250mm	1750mm	1950mm
Bed Dimension	2.4-3.5m
Putting Device	3(Fabric Putting/Sublimation Paper/Protection Paper Putting
Collecting Device	3(Finished Sublimation Paper/Fabric /Protection Paper Rewinding)
Gross Weight	2000kg	3000kg	3200kg
Machine Dimension	5000x2500x1660mm	50020x25800x1660mm	5000x3200x1660mm
Packing Size	2400x1550x1800mm	2900x1550x1800mm	3200x1550x1800mm

Description

This environmental high speed roller heat press machine model has 3 widths, 800*1200mm/800*1700mm/800*1900mm, has 33pcs heating tube, and the transfer speed can reach 350-450m/h.

thermal sublimation roll to roll to sheet to sheet, used in large factories or small workshops, they can all use these machines with very high efficiency and save money.
