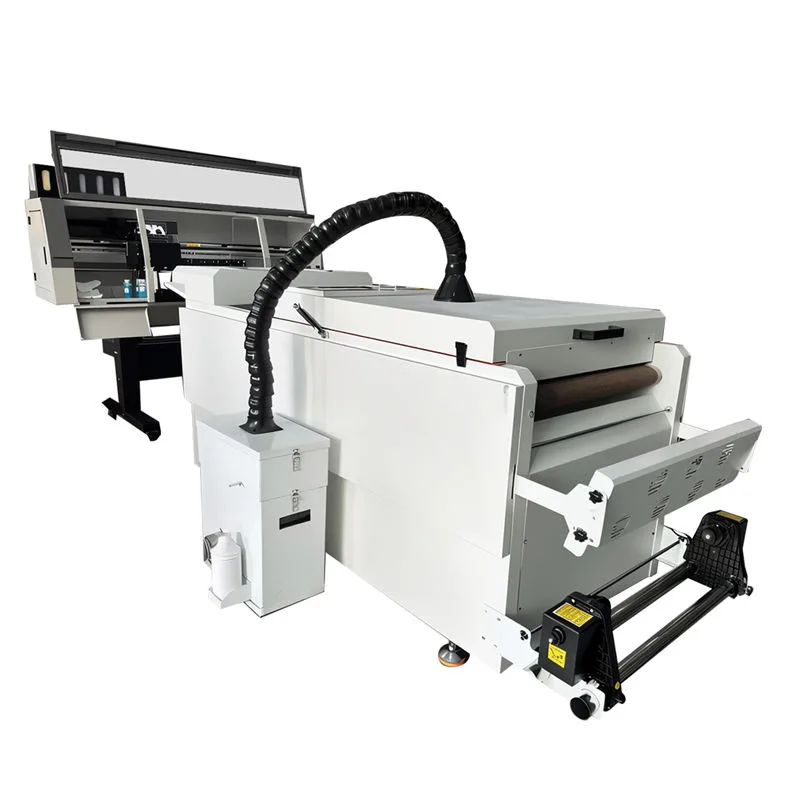

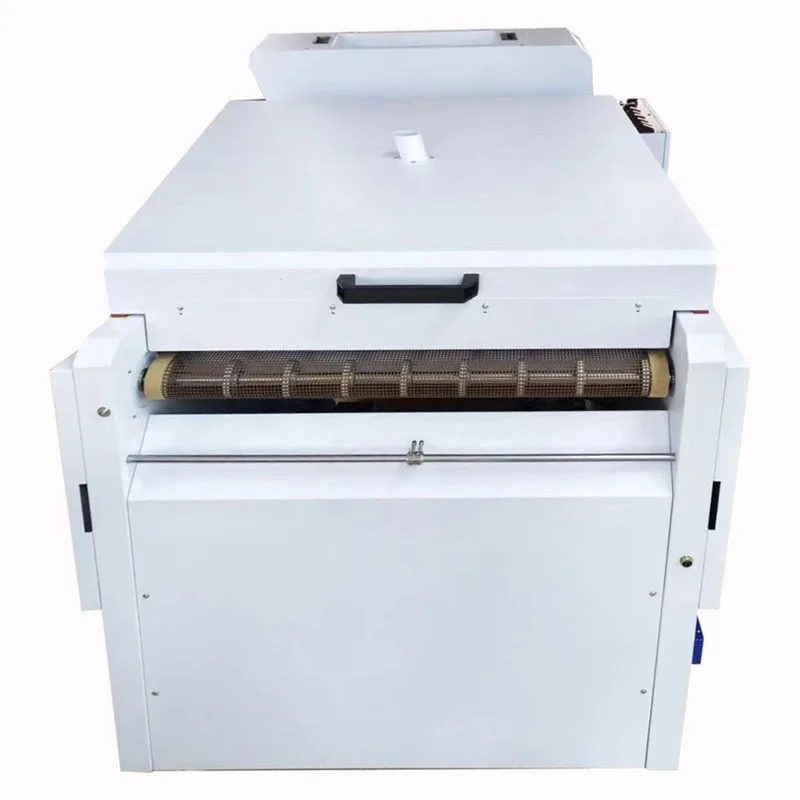

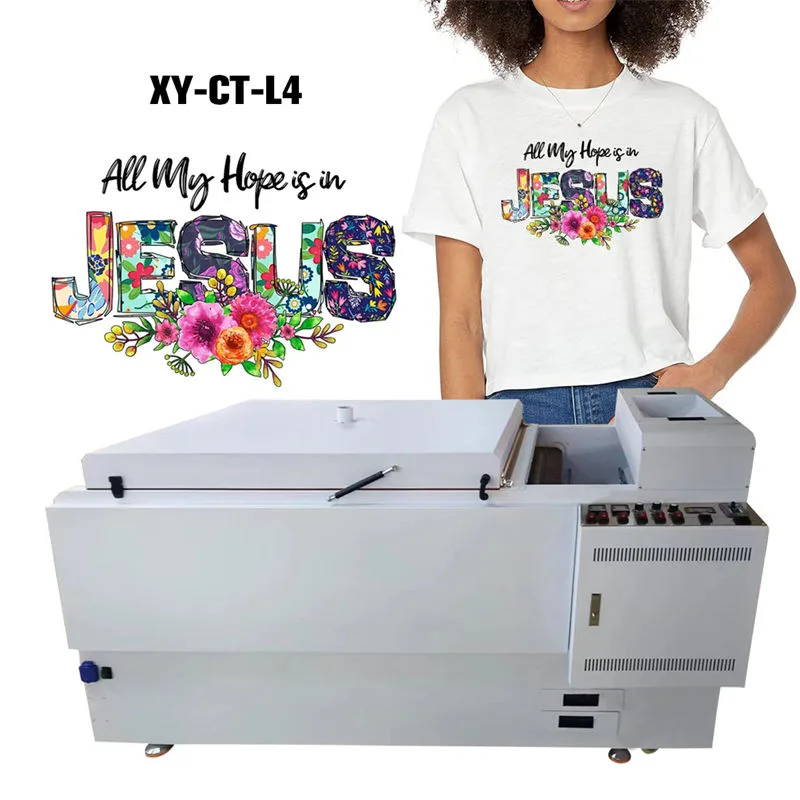

60CM Powder Shaking Machine XY-CT-L4

Major Advantage Highlights

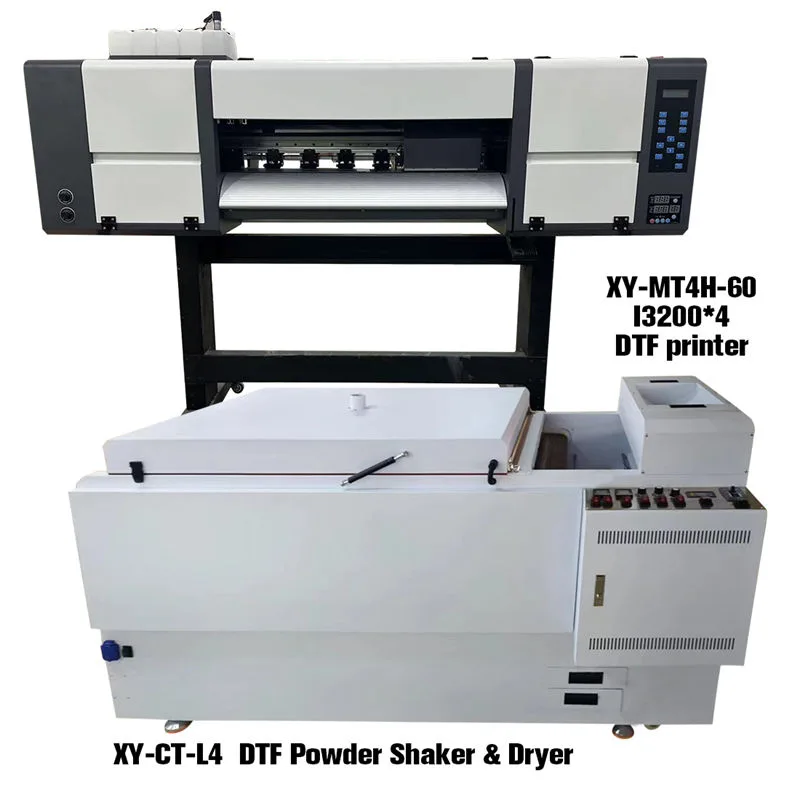

Suit for 4 heads film printer and has an automatic take-up system.
The patented roller powder trough design can evenly spread powder to prevent jamming and burning of the motor to maintain powder feeding stability.
The patented design of the multi-axis wheel prevents the Teflon mesh belt from slipping, making production smoother.

INQUIRY

Product Details

1. Turn on the main switch of the powder shaker, turn all functions on and adjust the automatic mode.

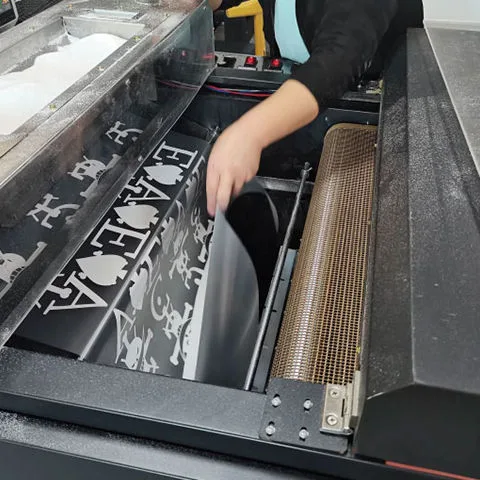

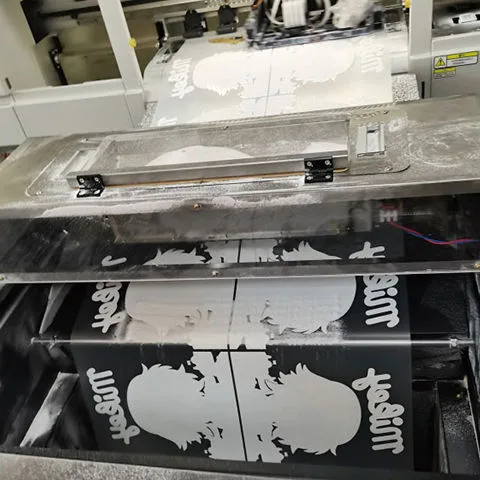

2. The print film is pulled out from the powder feeding area through the front heating plate, allowing the film to sag to the sensor.

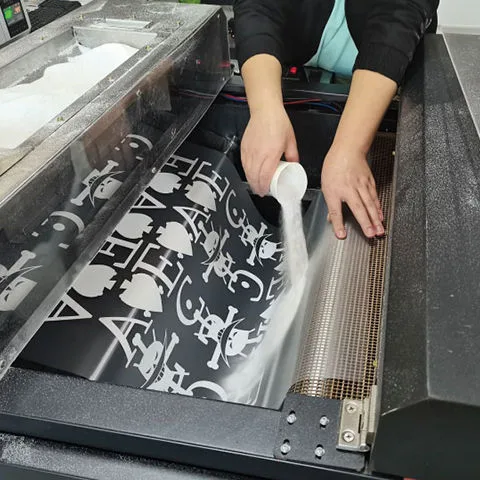

3. Sprinkle some adhesive powder on the sagging print film first.

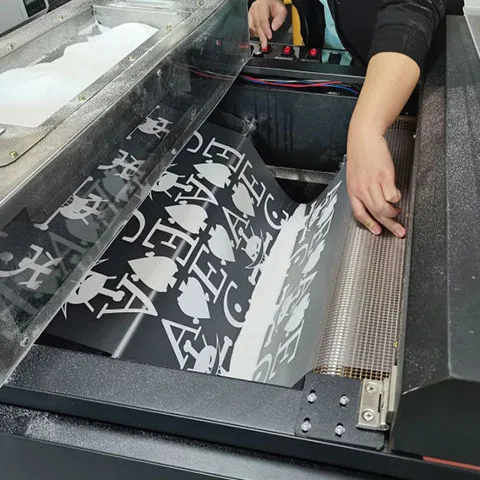

4. Use suction to adsorb the printed film onto the mesh belt and put it as flat as possible to minimize the problem of material deflection during collection.

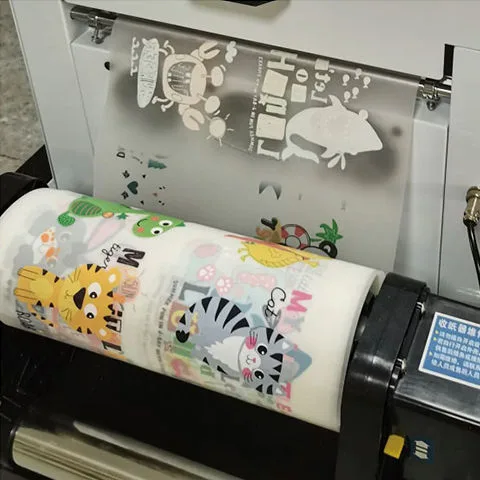

5. After baking, put the print film into the stacker position to take it up.





Parameter

Model	XY-CT-L4
Media Width	0-600mm
Suitable Media	PP Paper/PET Stamping Film

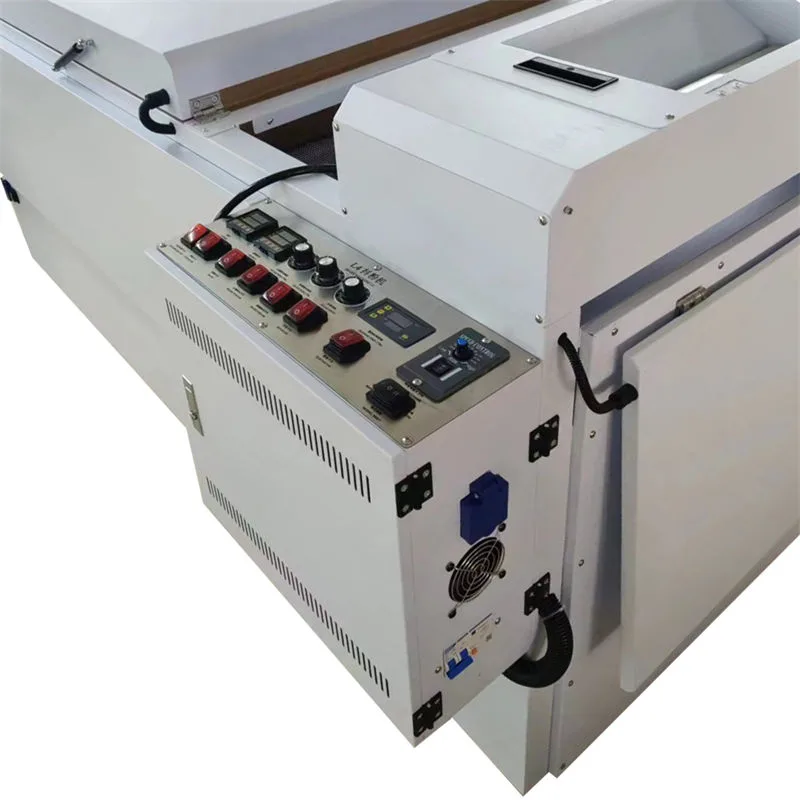

Control Panel	Automatic/manual control, powder shaking speed control, powder spreading time control, mesh belt suction speed control, mesh belt speed control, mesh belt direction control, curing temperature control, front heat-guide plate temperature control, cooling fan control
Heating Drying Function	Front heat-guide heating, drying and curing, cold air cooling function
Material Transfer	Mesh Belt Conveyor, Guide Belt
Winding Function	Automatic inductive winding
Rated Voltage	220V
Rated Current	16A
Power	6.5KW
Heated Drying Oven Size	1200mm
Machine Dimension	L2760W1100H1070mm
Package Dimension	L2070W1150H1130mm
Gross Weight	300KG

Description

This powder shaking machine has three deskewing rods, which are respectively installed after powder feeding, before entering the baking area, and after baking. It is recommended to fix the print film based on the width of the film after tightening the two screws on the deskewing rods, so as to make the print film’s running track maintain a straight line to prevent deviation.
