Large Format Sublimation Cotton Printer XY-MJT1900-8

Major Advantage Highlights

8 pieces of original Epson i3200-A1 print heads.
Different print heads are available, 8 heads or 12 heads, to meet different needs.
Adopting advanced micro-piezo technology with variable droplet size, allowing three droplet sizes to be combined to obtain high-resolution output.
Industrial taking up media and feeding media motor.
Staggered head distribution to ensure higher speed.
Support 45gsm transfer paper printing solution.

INQUIRY

Product Details

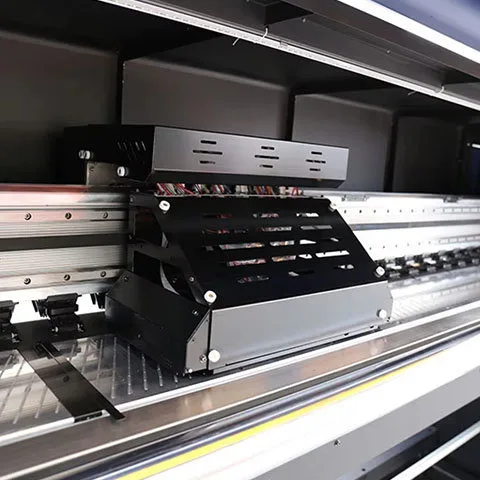

Intelligent Carriage

1. With anti-collision system to protect print head lifetime.

2. Smart cover design, more convenient maintenance.

3. Special damper holder.

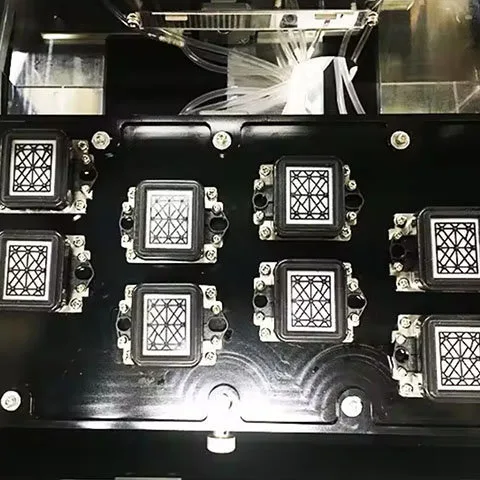

Capping Station

1. Intelligent 8-head sequence design, supporting 1-pass and 2-pass printing.

2. Automatic print head moisturizing function.

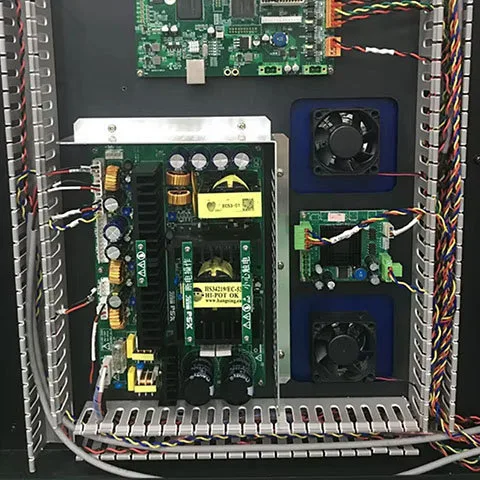

Main Board

1. All circuit board cables are neatly connected.

2. Special Fedar board.

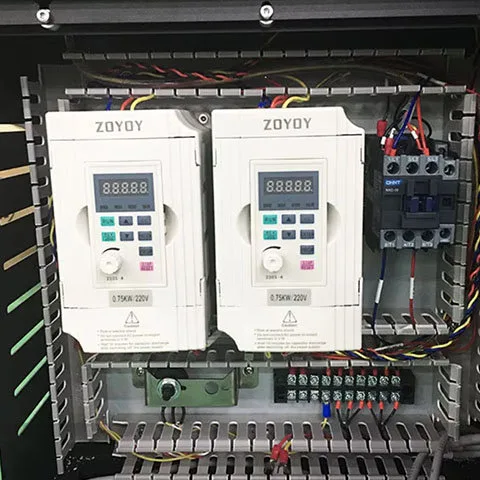

Intelligent Extra Dryer

Integrated dryer control system, it is easier to reset the dryer temperature, which will be safer.





Parameter

Model	XY-MJT1900-8
Print Head	8 Epson Original I3200-A1 Heads
Speed/Accuracy	1 pass 300 ㎡/hr 2 pass 160 ㎡/hr
Type of Ink	Sublimation ink
Color Mode	4 color/6 color/8color
Ink Volume	10L/single color
Print Material	Sublimation paper
The Maximum Print Width	1900mm
Max Materials Input Size	2000mm
Grams of Usable Material	≥32g/㎡
Max. Material Weight	400kg(Full-width)
Power Supply	AC220±10% 10kw
Working Environment Temperature	20-30℃
Working Environment Humidity	45-60%
Drying Methods	Infrared radiation, adjustable power
Maximum Available Roll Size	500mm
Maximum Roll Diameter	360mm(Length 2000m)

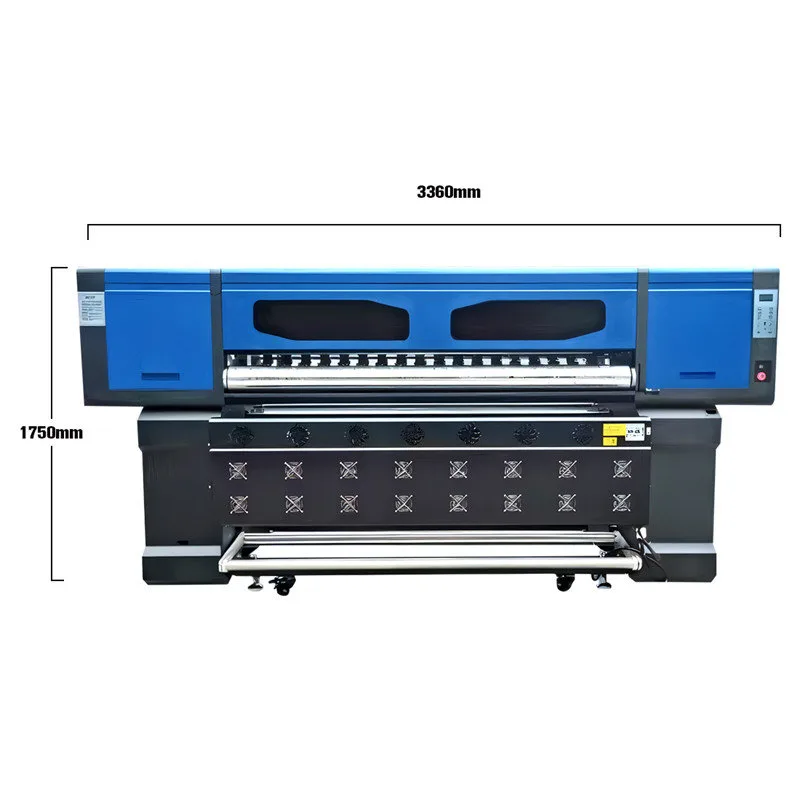

Machine Dimension(LWH)	3360x1300x1750mm
Package Dimension(LWH)	3410x1240x1780mm

Description

This model supports printing on transfer papers ranging from 45gsm to 100gsm and is ideal for transferring onto polyester (cotton content less than 30%), making it an excellent choice for home textiles and garment printing.

Using micro piezo technology, it offers variable droplet sizes, combining three droplet sizes for high-resolution output. Our product range includes inkjet printers, accessories, print heads, and ink.
