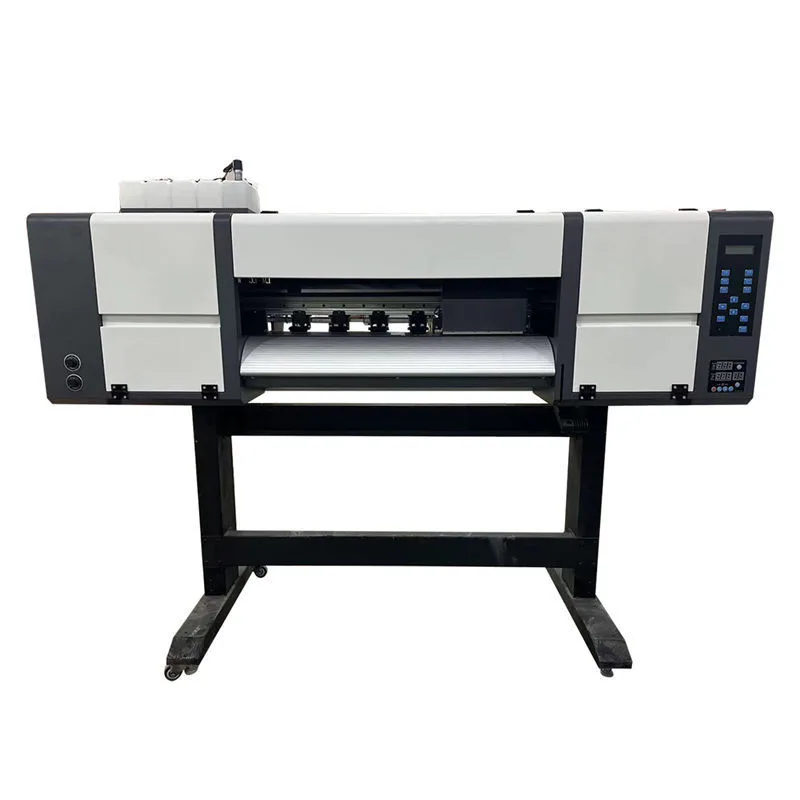

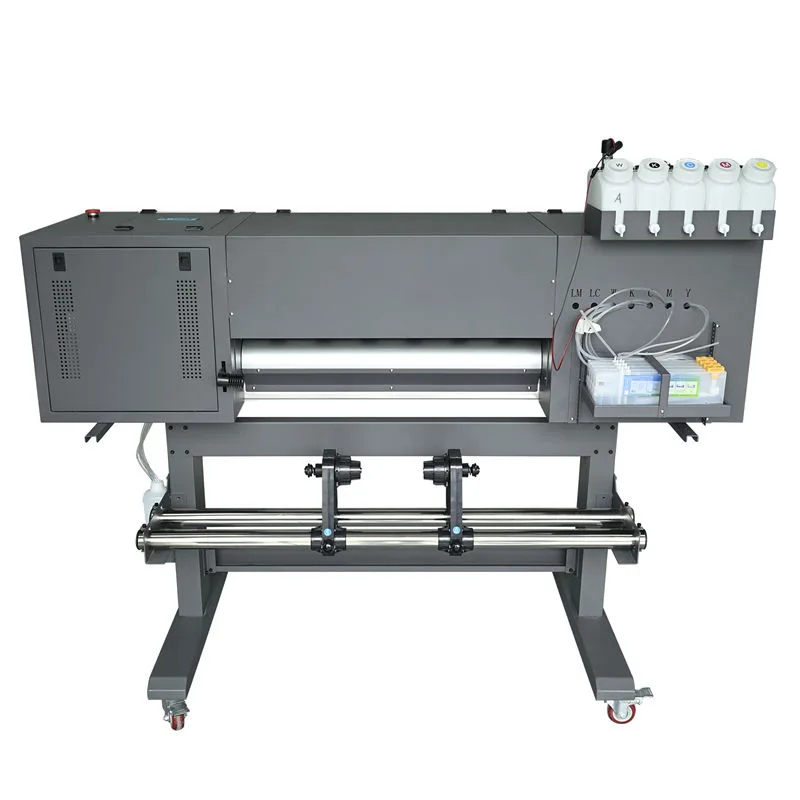

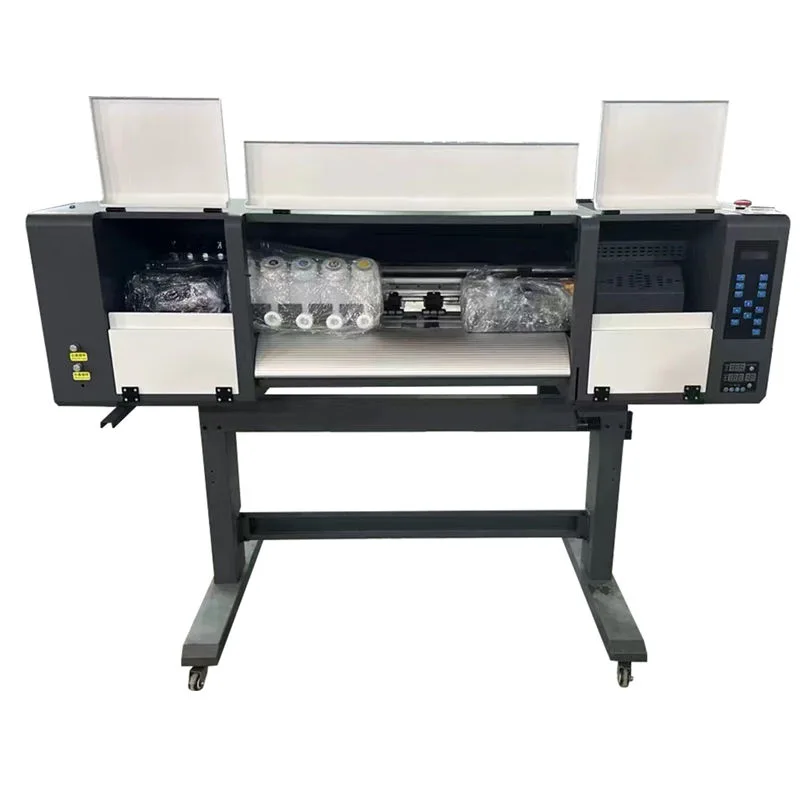

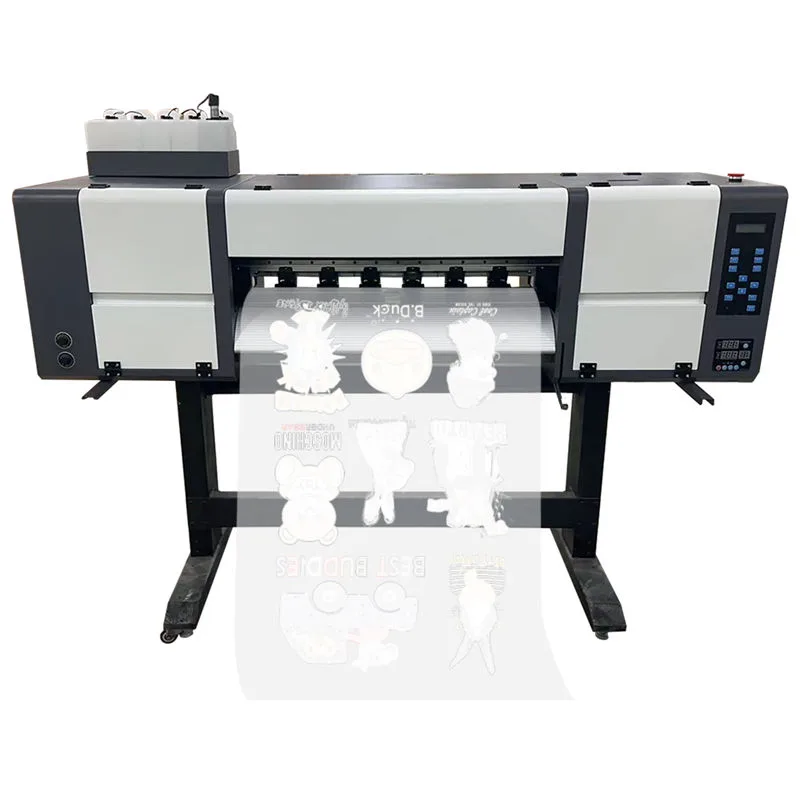

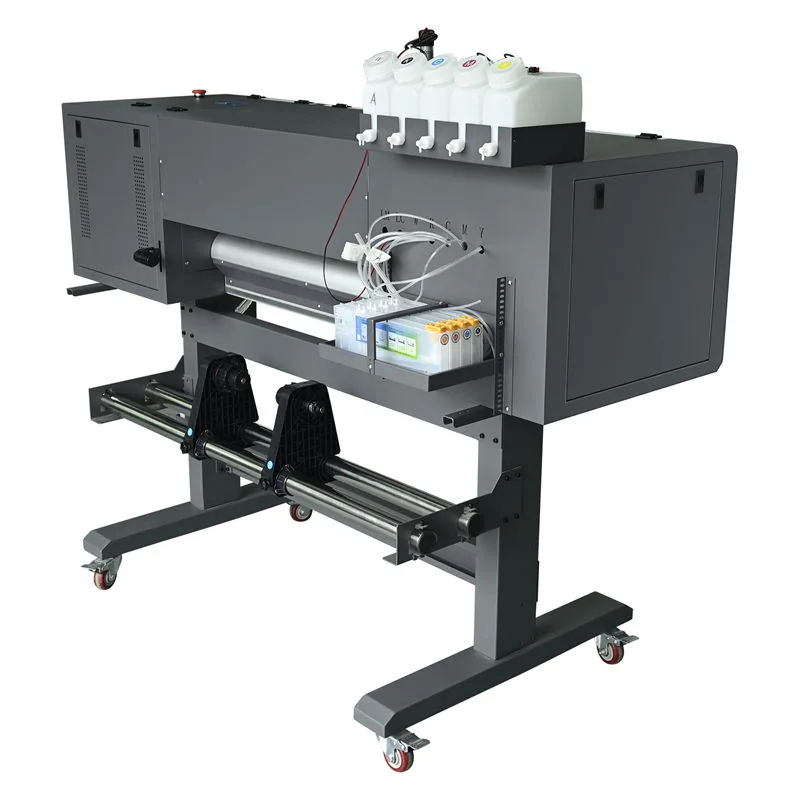

60CM DTF Printer for Small Business XY-MT4H

Major Advantage Highlights

No concerns about color differences or color fastness—the printed pattern matches your design perfectly.
No engraving, waste removal, or lamination is required, ensuring high productivity and compatibility with any pattern.
With no plate-making needed, it’s ideal for customized orders and small-batch production, enabling fast turnaround times.
Cost-effective and requiring minimal investment in equipment and space, it significantly lowers startup and operational costs.

INQUIRY

Product Details

1. White Ink Circulation

White ink is efficiently stirred and circulated to prevent precipitation.

2. Cleaning Function

Large-scale lifting and cleaning maintenance station.

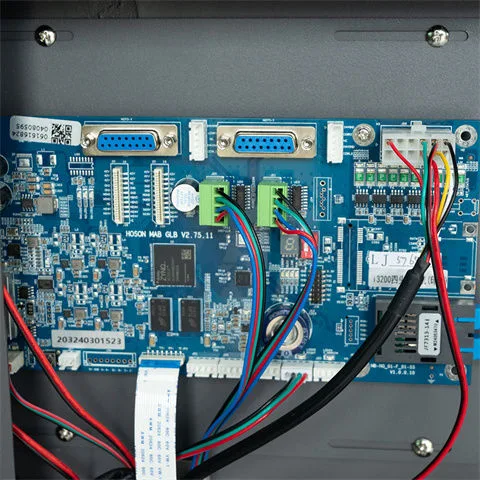

3. Core Board

Using high-end brand board.

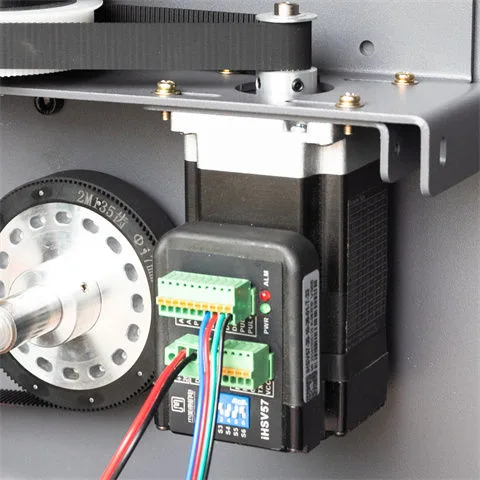

4. Servo Motor

LeiSai digital servo motor.

5. Linear Guide.

Super quiet and has high precision.

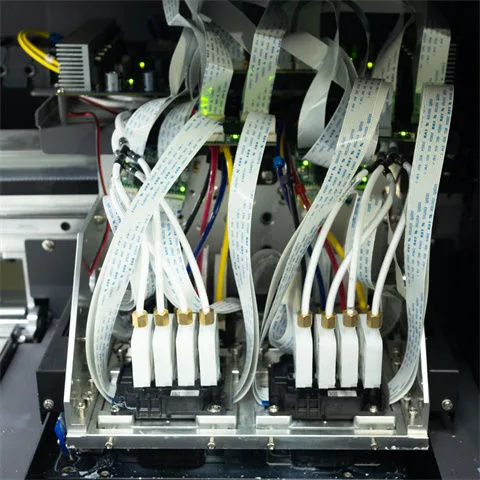

6. Ink Stack

Each print head has four stacks, ink is drawn faster and prints more smoothly.

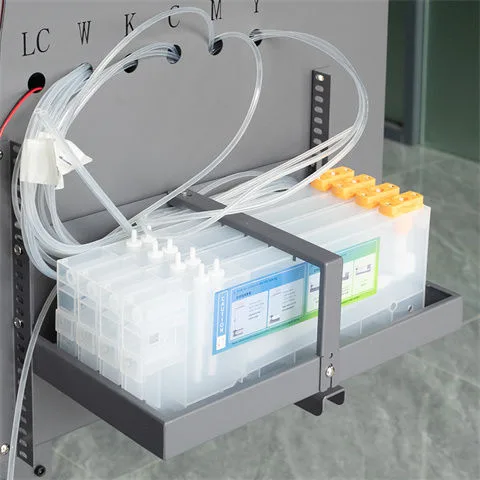

7. Sub Ink Tank

The ink circulates smoothly, the printing precision is high, and the printing color is bright.

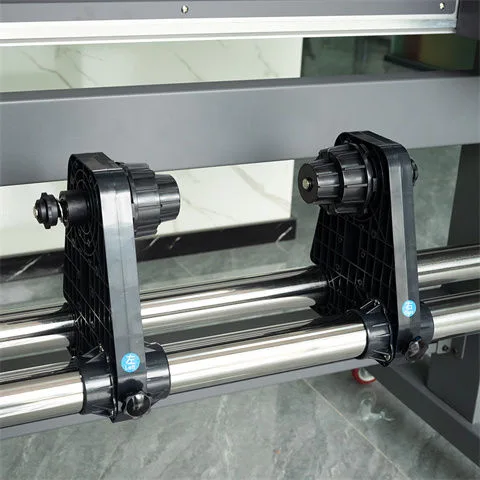

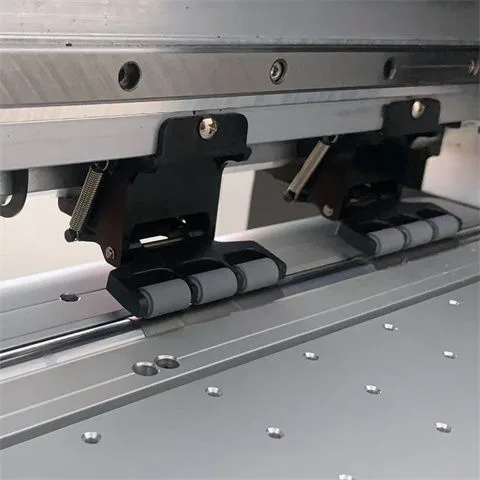

8. Feeding System

The induction automatic rewinder features a larger diameter, stronger torque, and compatibility with various special materials.

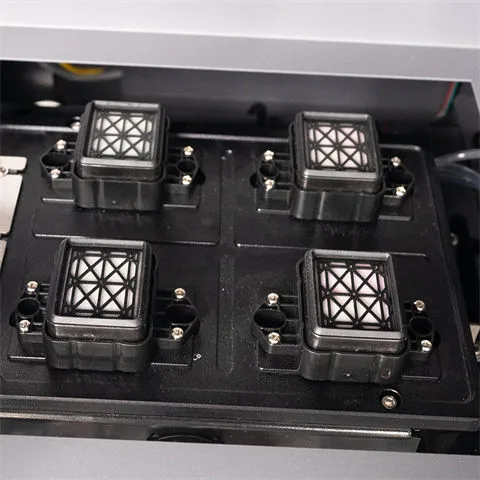

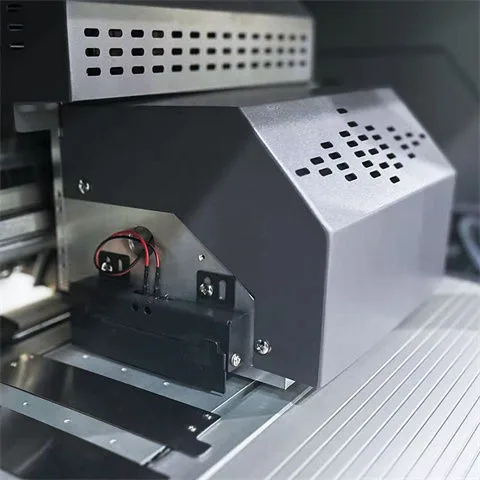

9. Capping Station

Protecting printer heads from broken and ensuring the printing is steady.

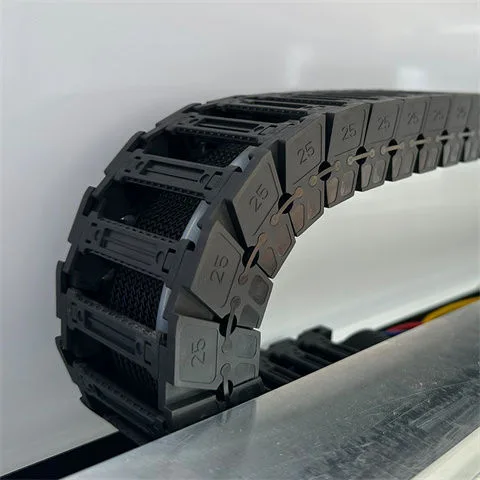

10. High Quality Tank Chain

Adopt high-quality tank chain to greatly improve the service life.

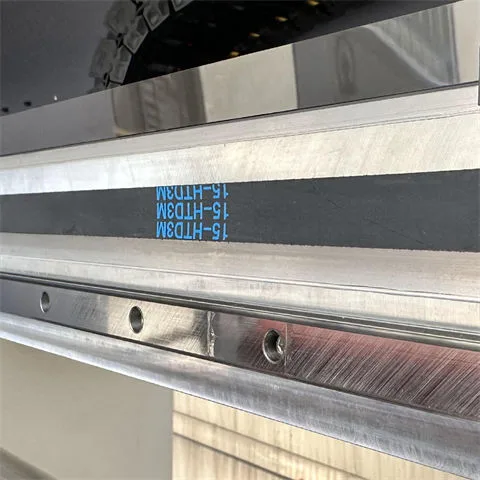

11. Imported Rails

Imported HIWIN silent linear guide rails are used to ensure high-precision and stable operation of the equipment and a longer service life.

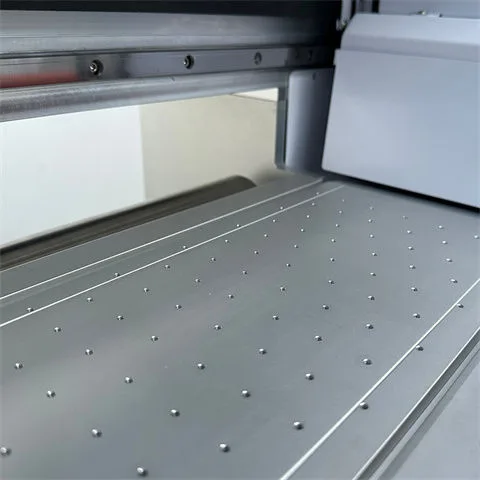

12. Vacuum Adsorption Platform

The mesh belt adsorption platform allows for a wider range of printing materials and more accurate printing accuracy.

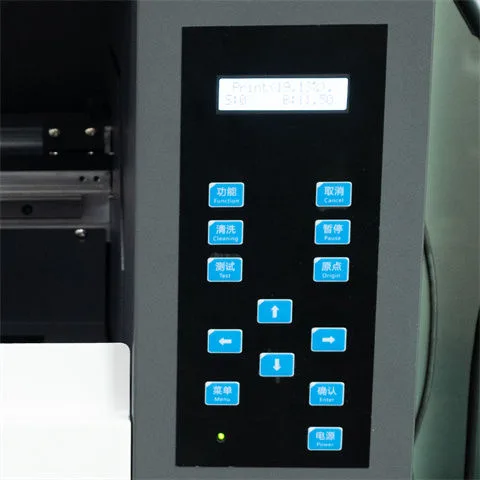

13. Digital Display

The Chinese and English keypad is clear at a glance and easy to operate.





Parameter

Model	XY-MT4H-60
Print Head	4 Epson i3200 Heads
Speed/Accuracy	4 pass 28㎡/h 6 pass 22㎡/h
Print Media	PET Film
Type of Ink	DTF Ink
Transmission Interface	Gigabit Network Port Transmission
The Maximum Print Width	650mm
Power Voltage	220V/110V 450W

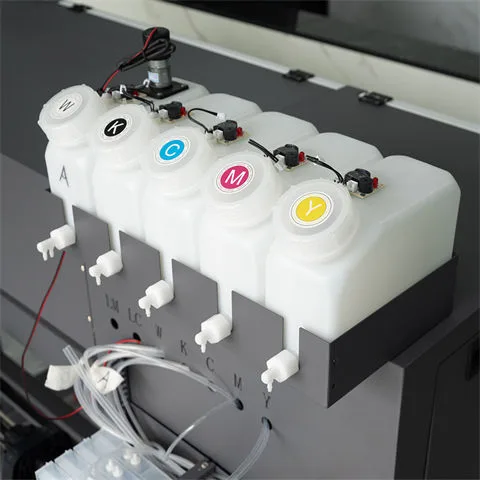

Ink Supply System	1.5L Ink Bottle with Alarm Function+Secondary Continuous ink Supply System+White Ink Agitate and Circulation
Printing Altitude	0-12mm
RIP Software	Maintop6.1, PP, PF
Document Format	PDF, JPEG, TIFF
Gross Weight	110KG

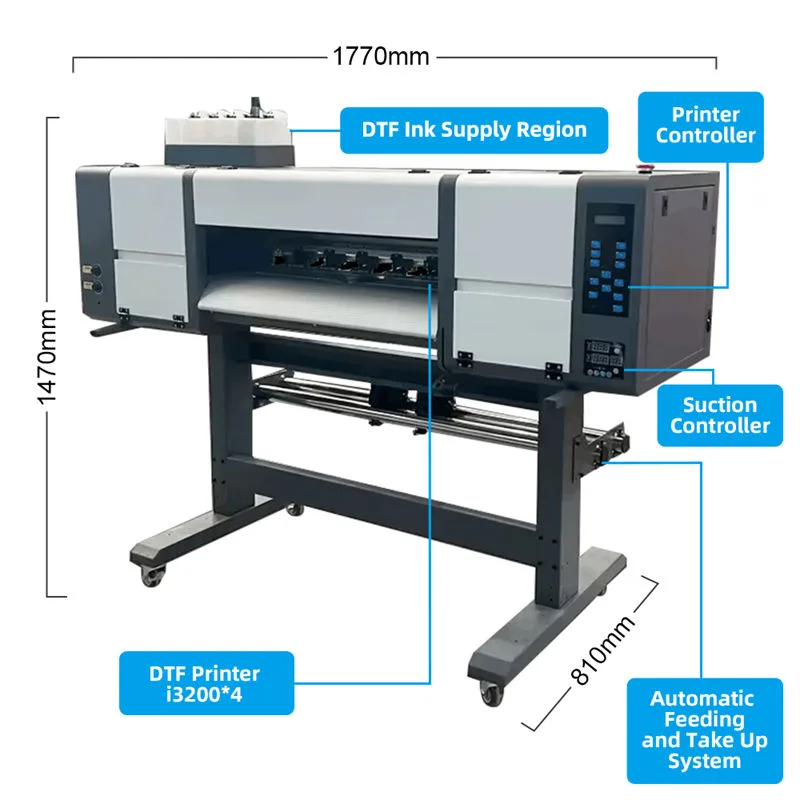

Machine Dimension(LWH)	1770x810x1470mm
Package Dimension(LWH)	1830x830x820mm

Description

DTF is mainly used in fabrics such as cotton and polyester. Common applications include T-shirts, sweatshirts, eco-friendly bags, pillows, aprons, promotional shirts, and cultural shirts.

DTF is a high-temperature transfer process widely used in the clothing industry. The design is created on a computer, printed using a DTF printer, then powdered using a powder shaking machine, and baked at high temperature for color fixation, before being pressed onto the fabric.

There is no need for plate making, engraving, or waste discharge, and no minimum order quantity is required, making it highly popular with e-commerce entrepreneurs and custom manufacturing businesses.
